Product | Description | Qty. | Price$ |
AVT-424 |
AVT-424 LIN Interface.
Supports:
Six channels of LIN - all versions.
Uses high speed SPI interface to a microcontroller.
All six channels are independent.
All six transceivers are independent and can have separate external voltage references.
I can provide a basic users manual, a schematic, and a copy of the source code (on request).
Full size image: Image #1 |
11 | US$ 75.00 |
AVT-853 |
AVT-853 Interface.
Supports:
Two channels of Classical CAN;
Two channels of KWP or LIN.
One channel of J1850 VPW (GM Class 2).
Ethernet connection to control computer (the Client).
These are production boards.
Includes a one-year warranty.
Enclosures are available. Refer to the Price List page for order number information. Larger image: Image #1 |
2 |
US$ 415.00 (in enclosure) US$ 385.00 (board only) |

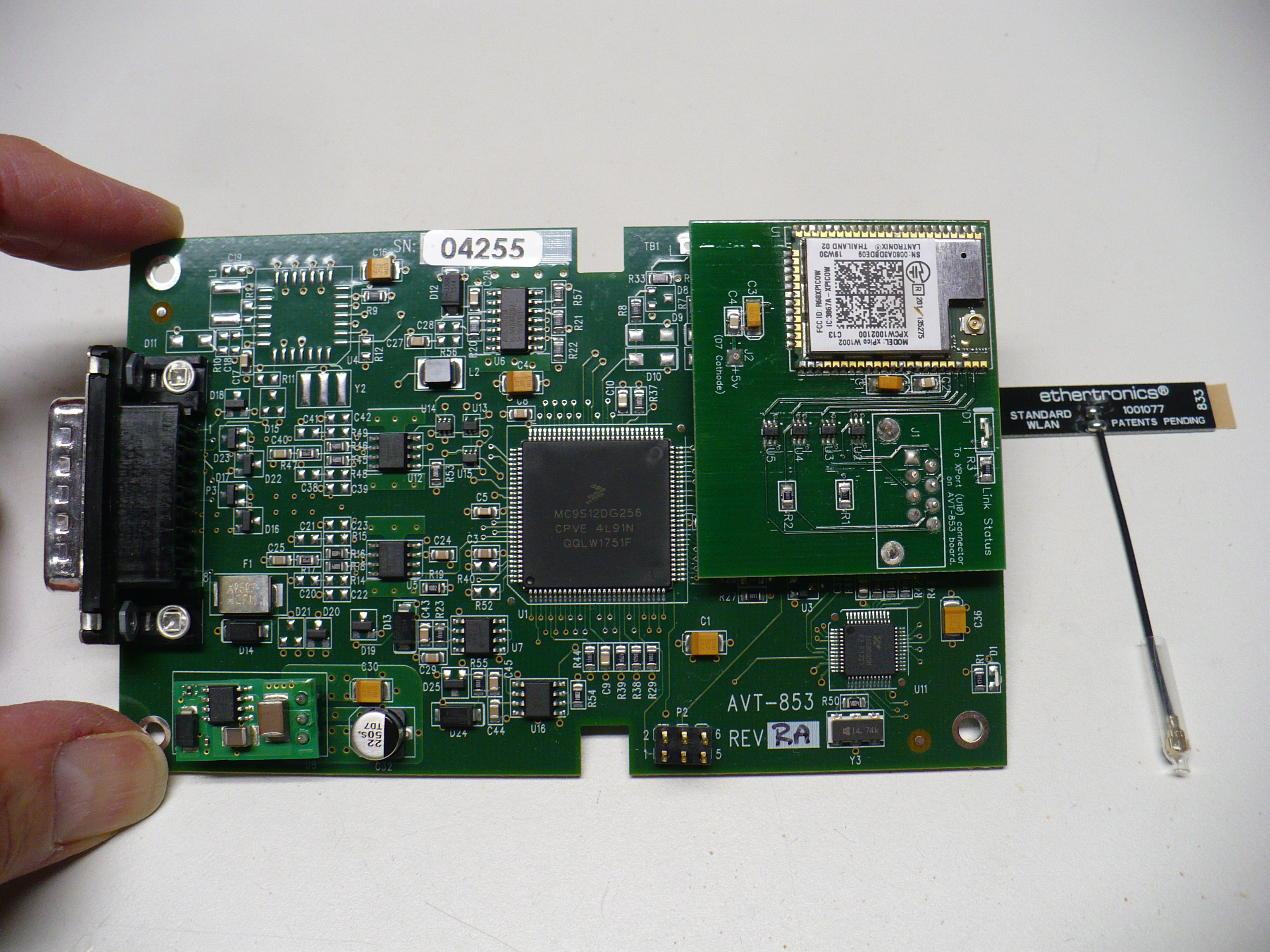

AVT-853 - WiFi |
AVT-853 Interface with WiFi.
Supports:
Two channels of Classical CAN;
two channels of LIN or KWP.
WiFi connection to control computer (the Client).
This is a production 853 board modified by installing a Microchip model xxx WiFi module.
Includes an external antenna.
Includes a one-year warranty.
Enclosure is available.
Larger images: Image #1 Image #2 Image #3 |
1 |
US$ 400.00 (in enclosure) US$ 375.00 (board only) |

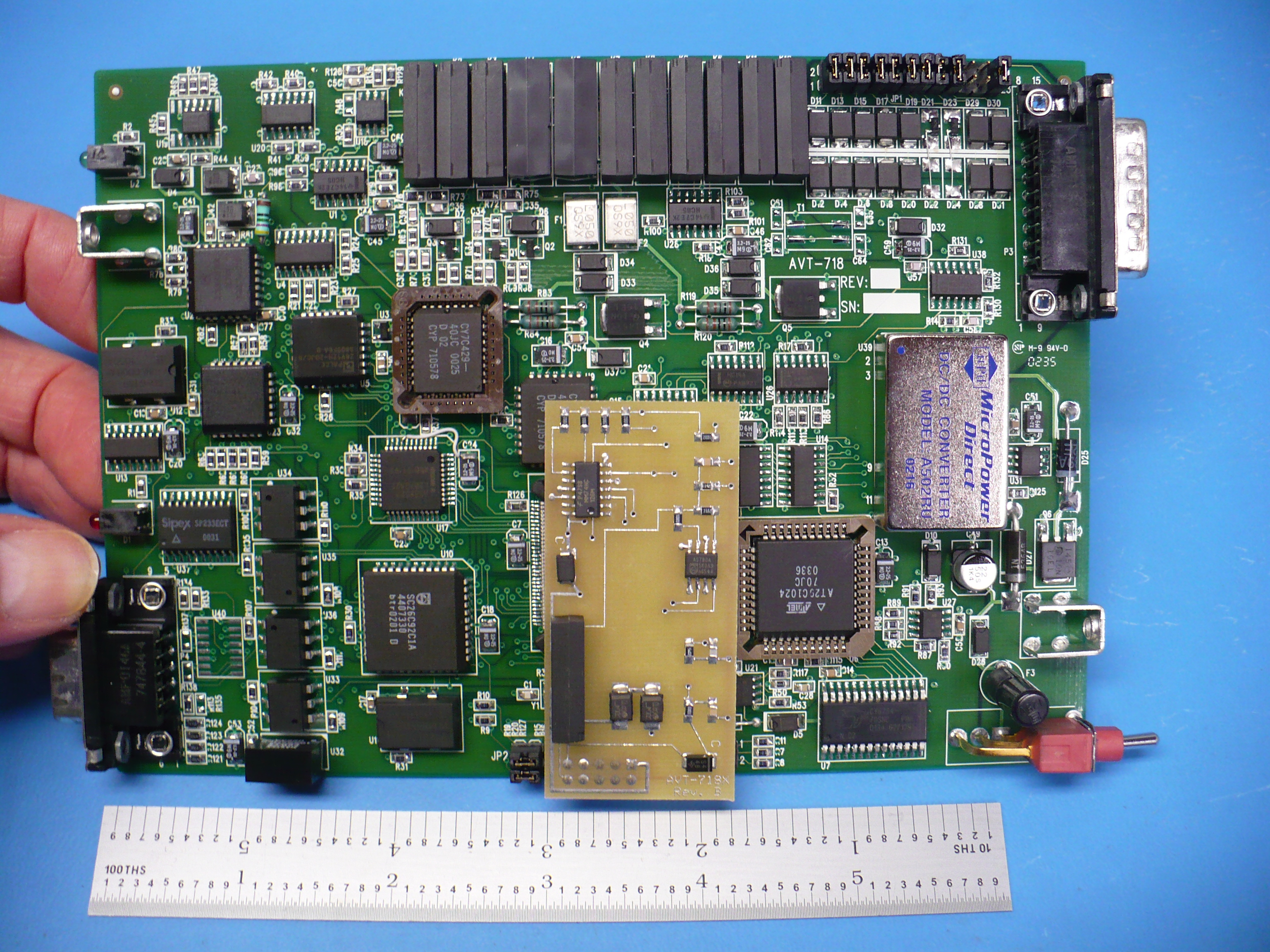

AVT-718 |
AVT-718 Interface. Supports J1850 VPW (GM Class2), J1850 PWM (Ford SCP),
CAN (high speed 2-wire, fault tolerant 2-wire, Single Wire (SWC), KWP,
and LIN. RS-232 connection to control computer.
I will update the hardware to most recent production standards,
install the most recent firmware, and test the unit.
This was my engineering unit that I used for all firmware
development and testing.
It is not a "pretty" board but it is fully functional.
Includes a one-year warranty.
Enclosure 'might' be available.
No cables.
Full size images: Image #1 Image #2 |
1 | US$ 300.00 |
AVT-838 |
AVT-838 Interface. Supports J1850 VPW (GM Class2). RS-232 connection to control computer.
I will install the most recent firmware and test the unit.
Enclosure (shown) included.
No cables.
Free domestic US shipping via USPS.
|
1 |
US$ 35.00 |
AVT-837 |
AVT-837 Interface. Supports J1850 PWM (Ford SCP). RS-232
connection to control computer.
These are production units.
I used one of them for firmware and hardware development and testing.
One board includes programming voltage support (software controlled).
The other two do not, but the hardware could be installed.
I will install the most recent firmware and test the interface board.
No enclosure, but enclosure is optional for an extra $10.00.
No cables.
Free domestic US shipping via USPS.
|
3 | US$ 25.00 |

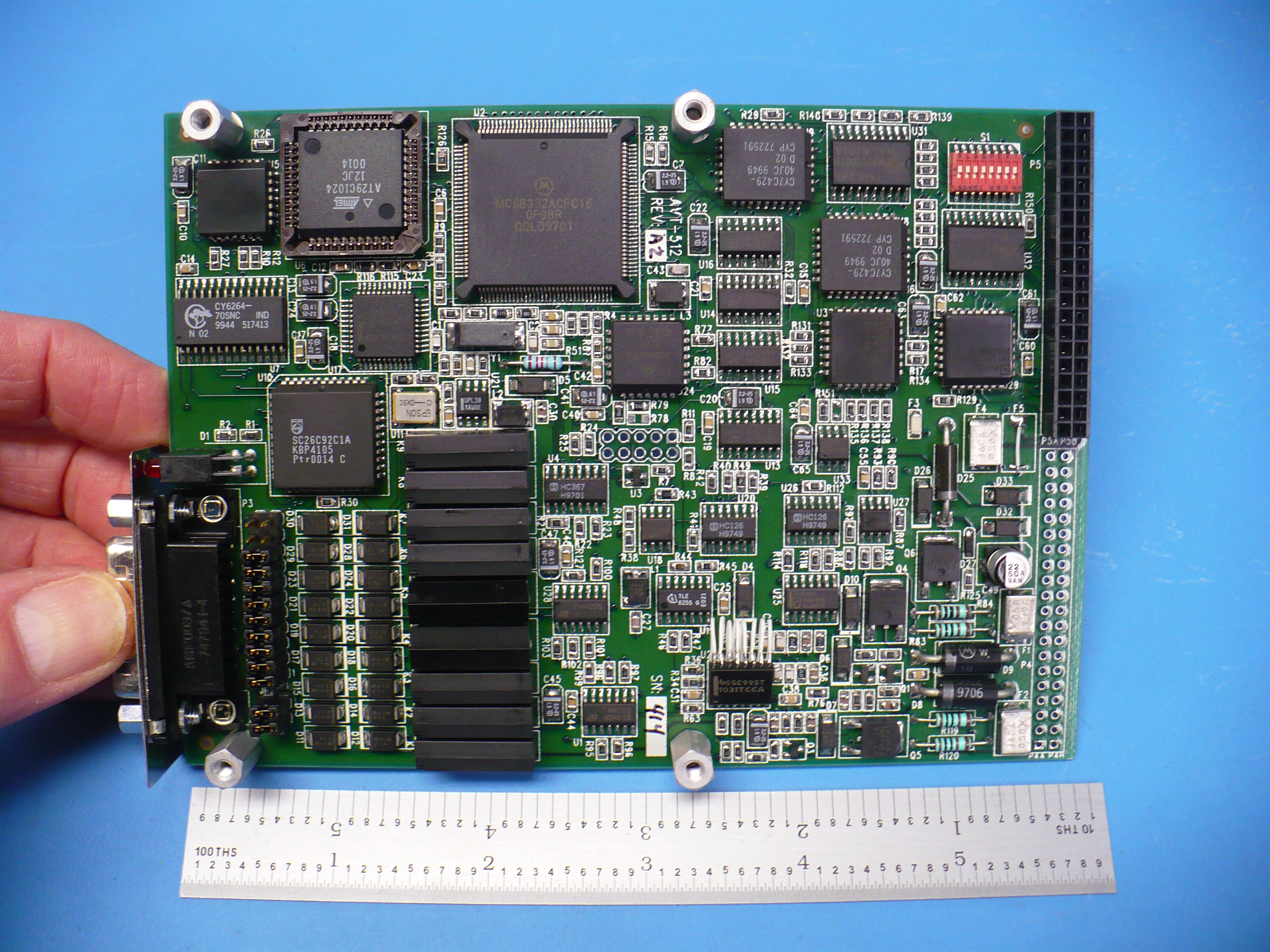

AVT-512 |
AVT-512 M-Module Multiple Interface unit. Serial number 414;
revision "A". M-Module unit. Supports J1850 VPW; KeyWord
Protocol 2000 (ISO 14230 and 9141); Single Wire CAN (SWC);
2-wire CAN (ISO 11898); and Ford UBP. J1850 PWM Zinger (Ford
SCP) device is installed on the board; but software was never
completed for that device. I might be able to test the
board. (I still have my VXI test hardware. But it
might go away soon.) Full size image: Image #1 |
1 | US$ 25.00 if not tested. US$ 100. if tested. |

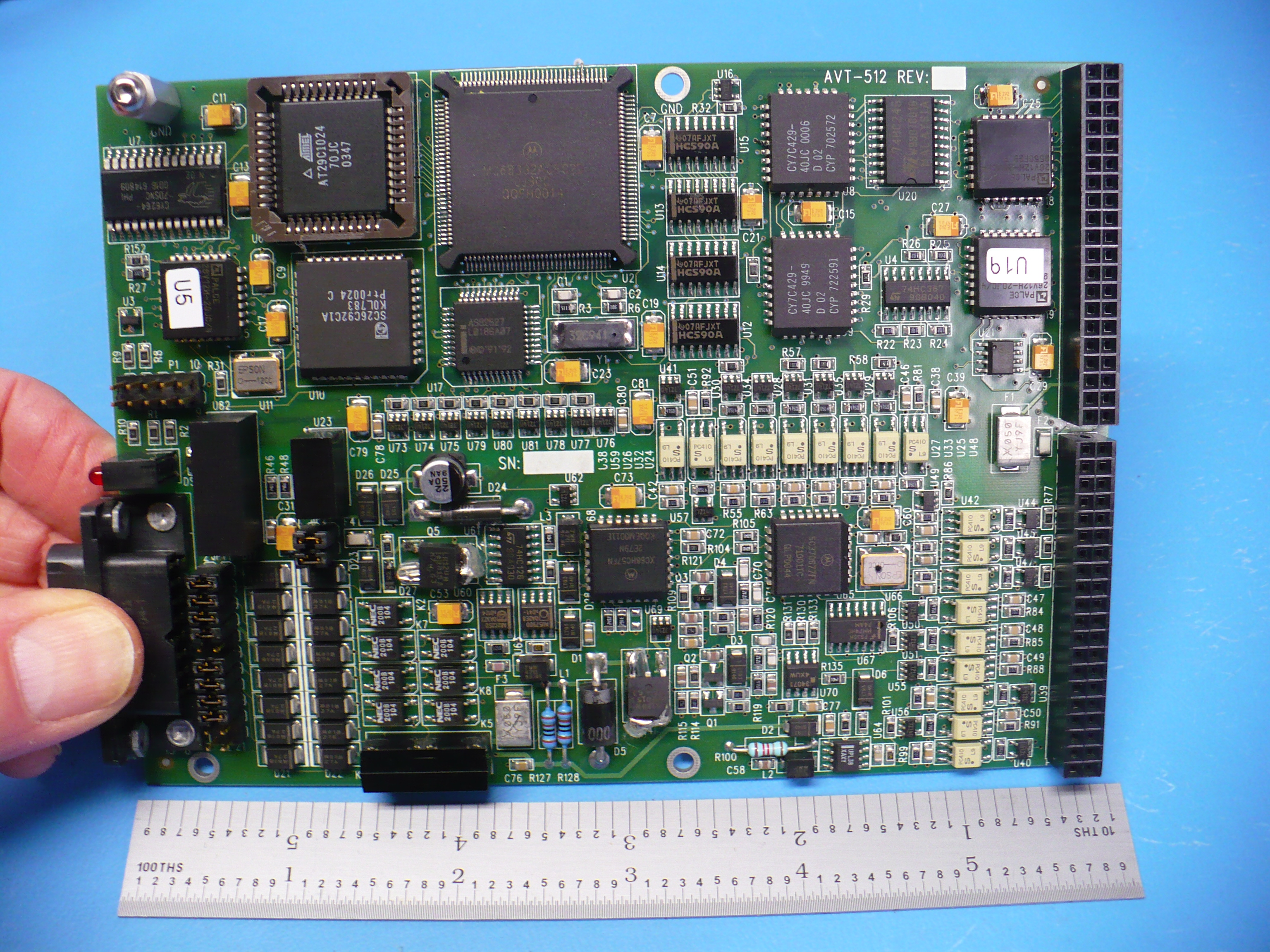

AVT-512 |
AVT-512 M-Module
Multiple Interface unit. Production level rev. "B"
board. M-Module unit. Supports: CAN (high speed 2-wire
and Single Wire); J1850 VPW (GM Class 2); J1850
PWM (Ford SCP); KeyWord Protocol 2000 (ISO 14230 and
9141); and Ford UBP. It was my engineering
board. I used it to develop and test all unit firmware
and hardware. It is fully functional. I will
install the most recent firmware. I might be able to test
the board. (I still have my VXI test hardware. But
it might go away soon.)
Full
size image: Image #1
|
1 | US$ 25.00 if not tested. US$ 100. if tested. |

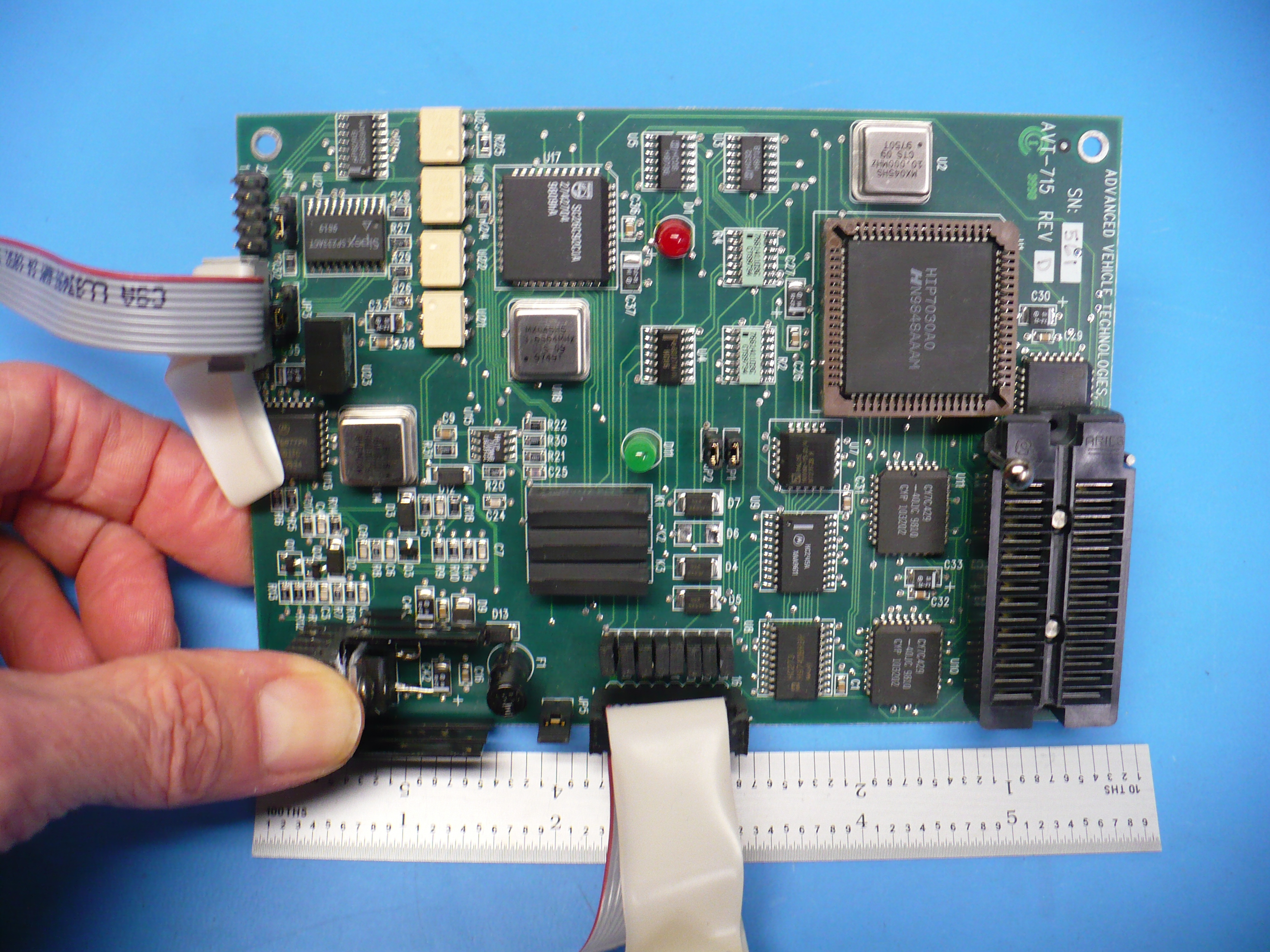

AVT-715 |
AVT-715
interface. Supports J1850 VPW (GM and Chrysler - does
not support high speed mode); J1850 PWM (Ford
SCP). Production hardware. This was my engineering
unit that I used for all firmware and hardware development
and testing. It is fully functional. Enclosure
not included. No cables. Free domestic US
shipping. Includes the CCD adapter board
(Chrysler), if you want it. I will install the most
recent firmware and test it.
Full size images: Image #1 Image #2 |
1 | US$ 35.00 |
AVT-715 CCD |
CCD interface adapter for the AVT-715 unit. Production boards.
Documentation may be available on request.
Could be adapted to work with a UART signal line.
|
7 | Free |
AVT-715 CCD |
CCD interface adapter for the AVT-715 unit. Second prototype.
Serial number P2. Good working condition. Board is housed in an
enclosure. Documentation may be available on request.
Could be adapted to work with a UART signal line. Full size images: Image #1 Image #2 |
1 | Free |

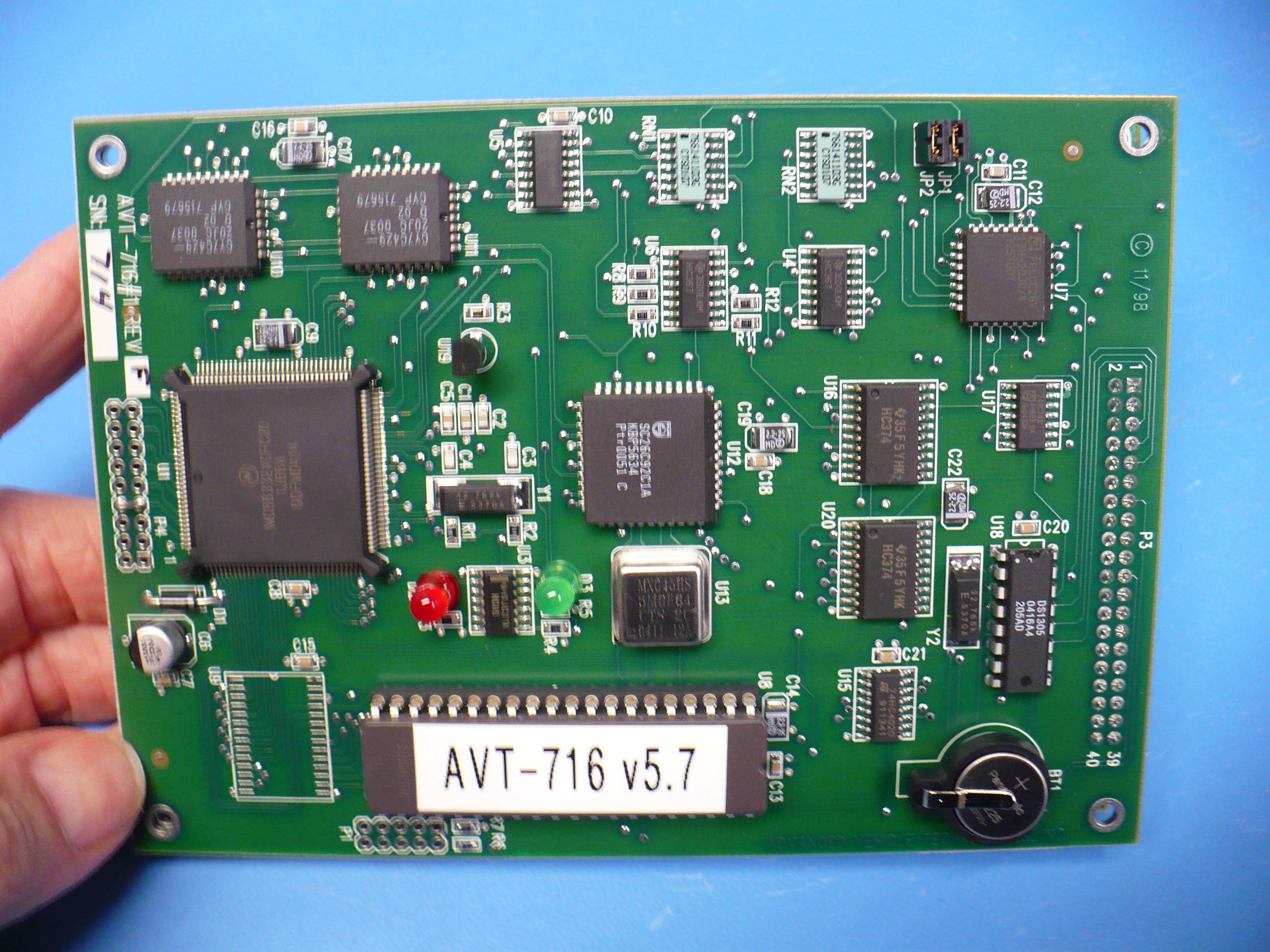

AVT-716 |
AVT-716 Interface. RS-232 or RS-422 to control computer. Supports J1850 VPW (GM Class 2),
J1850 PWM (Ford SCP), ISO9141, ISO9141-2, ISO14230 (KeyWord Protocol 2000), Chrysler CCD.
I will install the most recent firmware and test the board set. I will include a

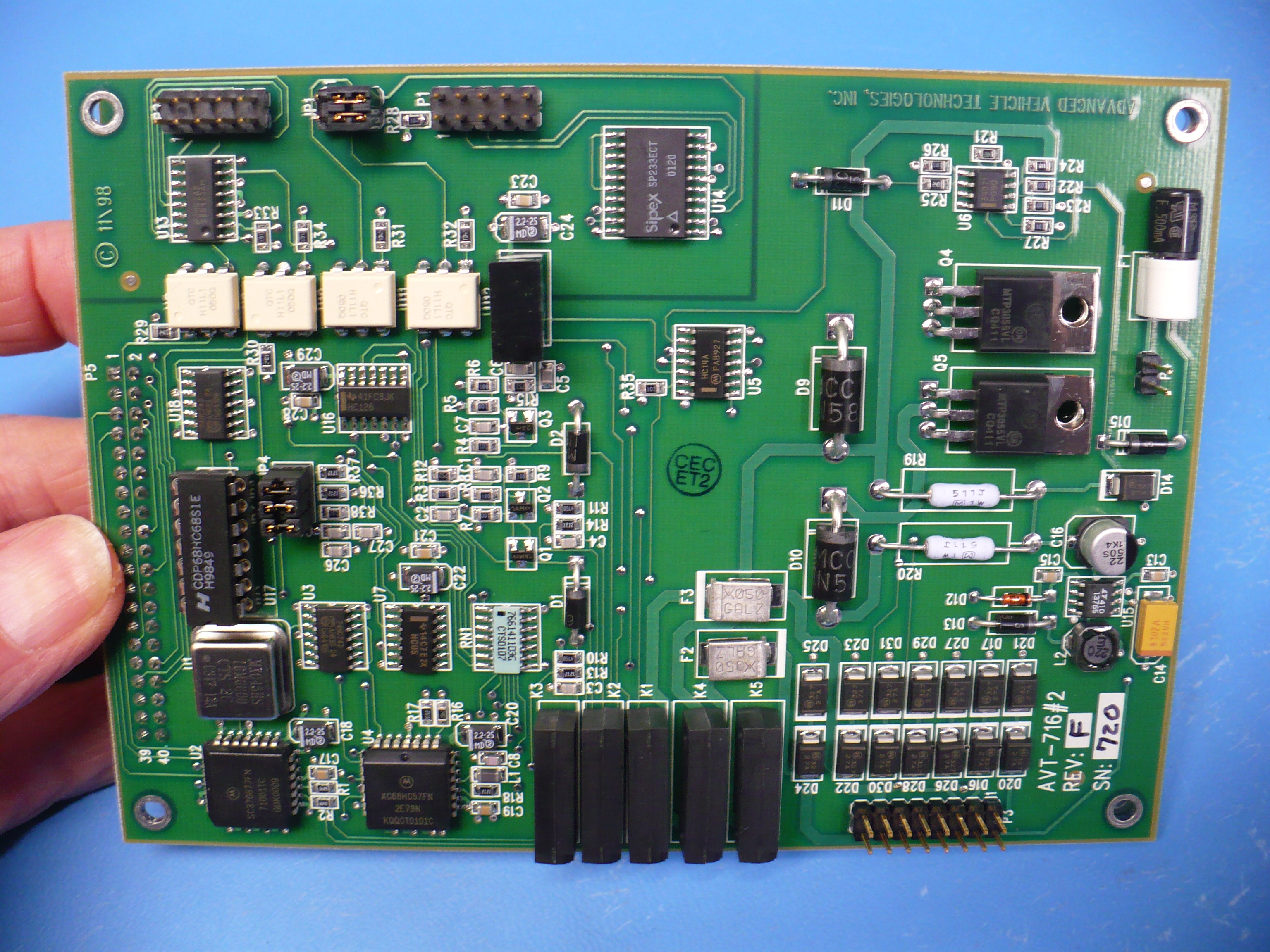

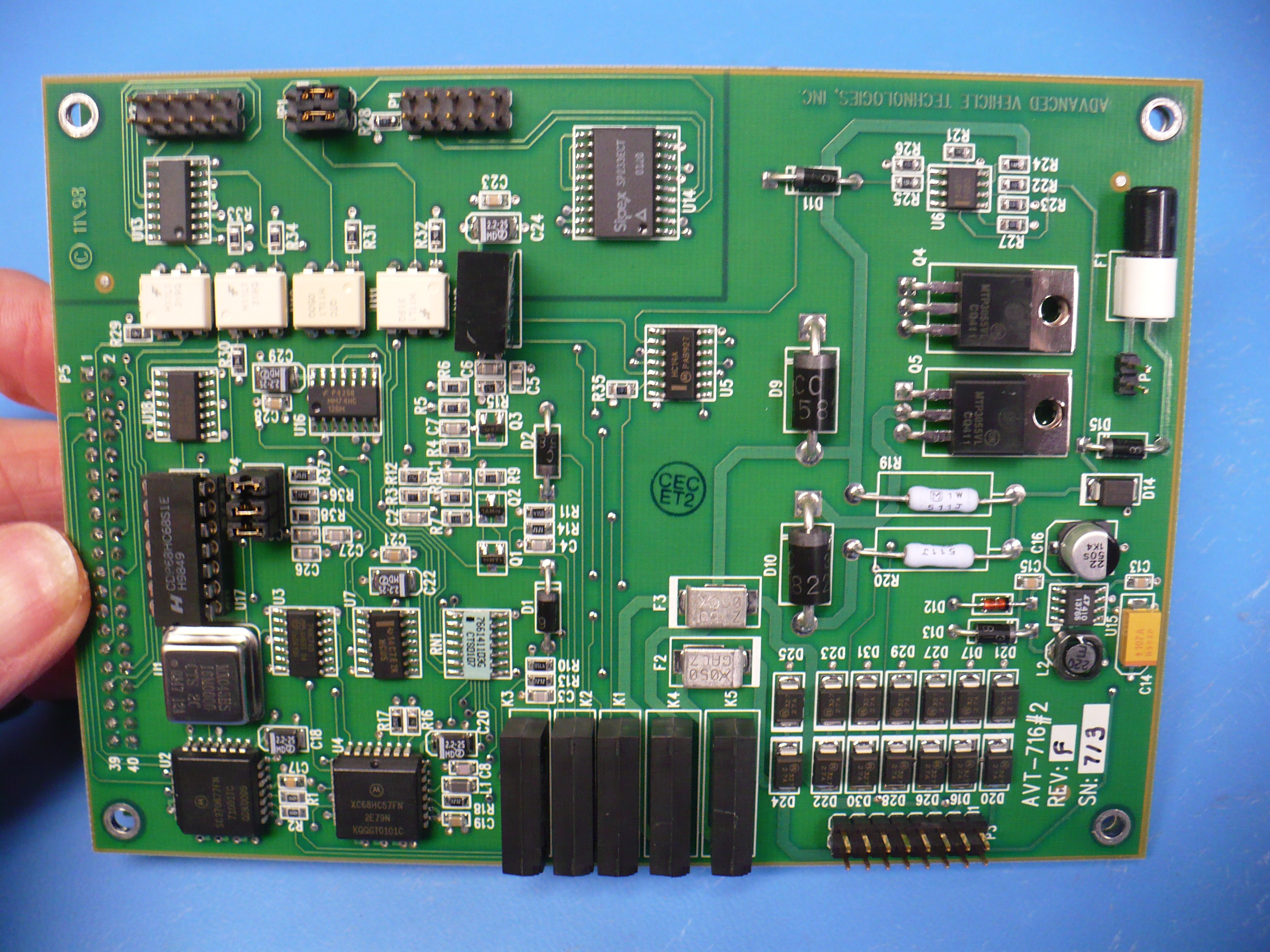

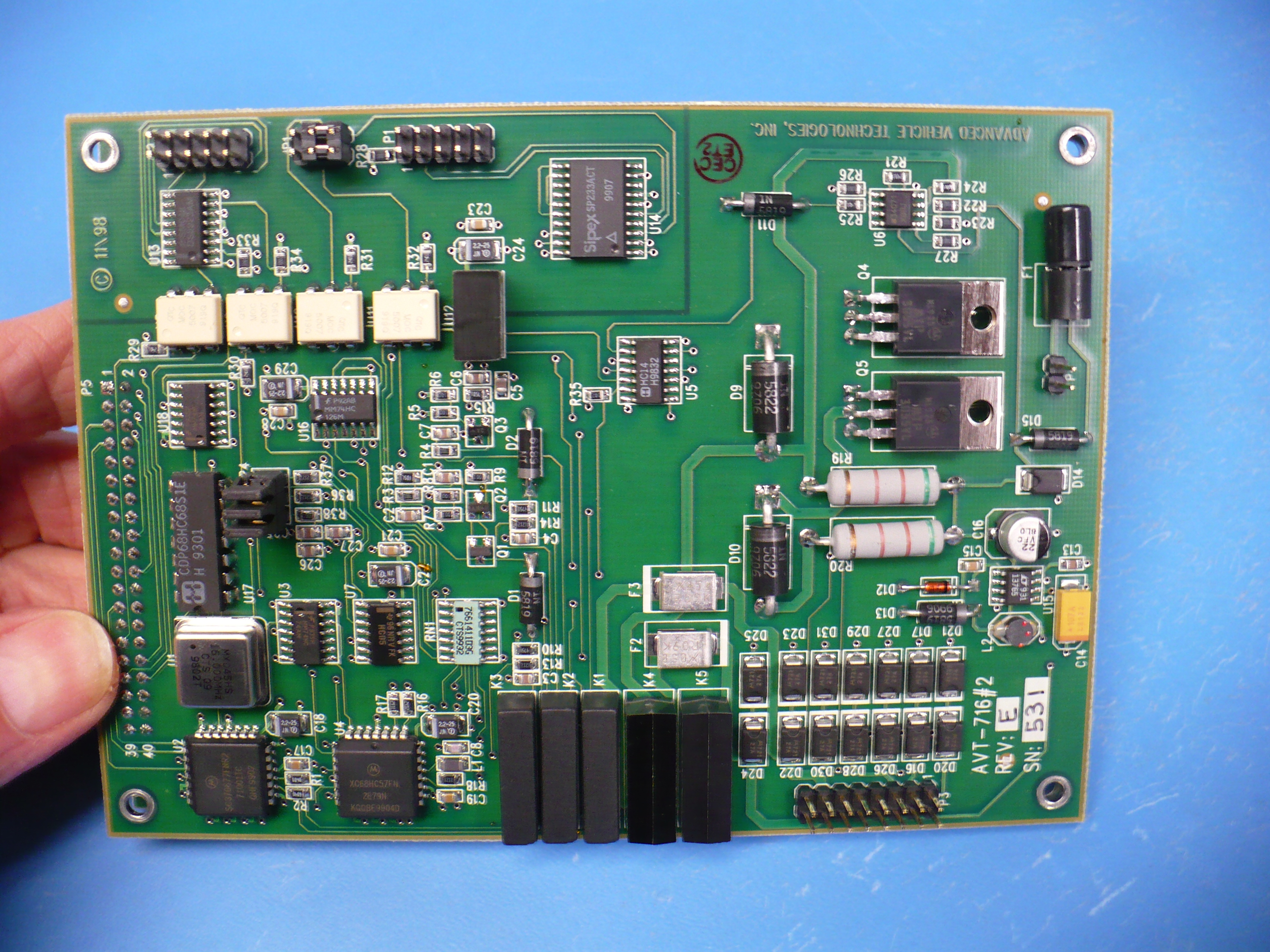

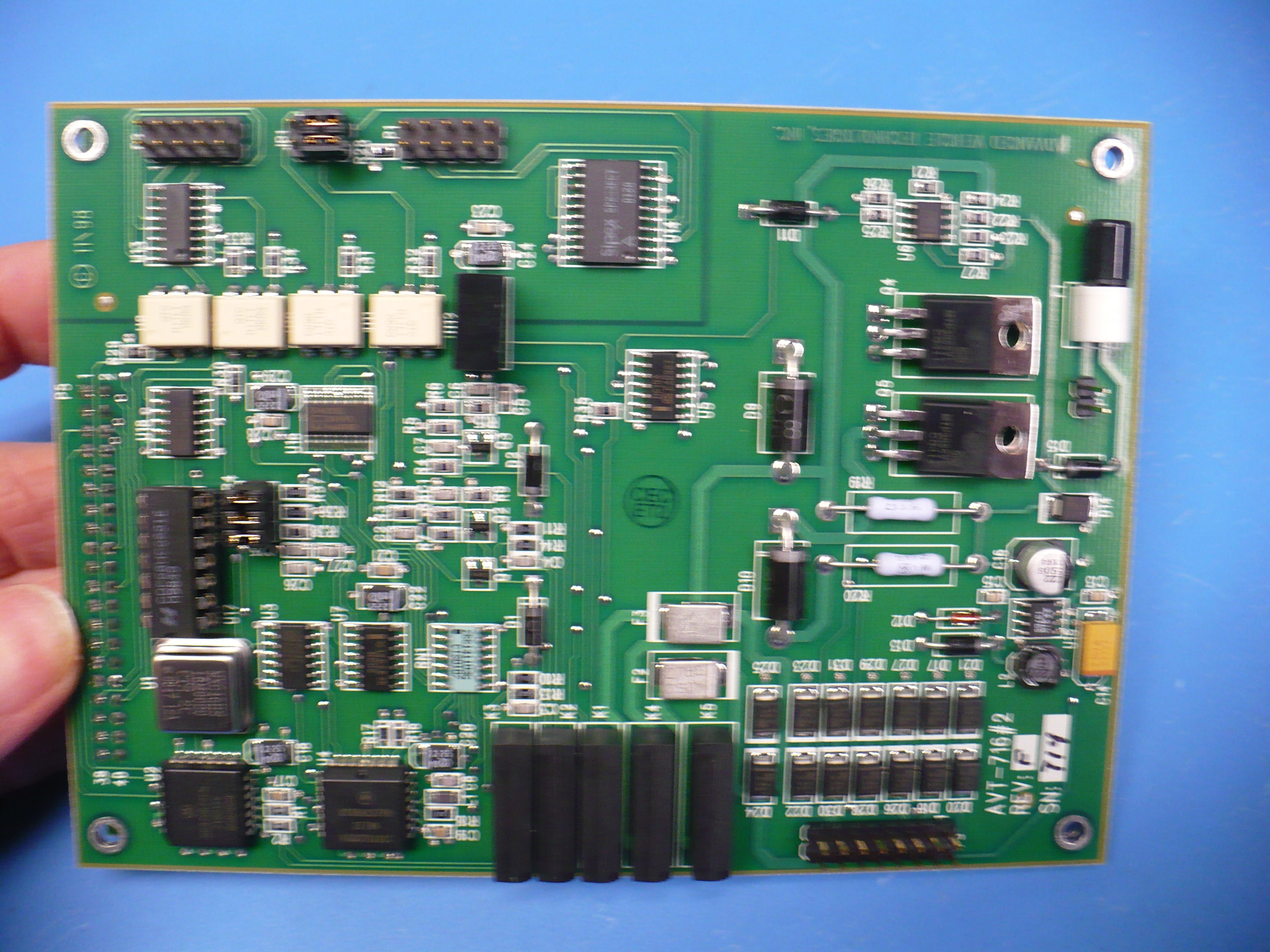

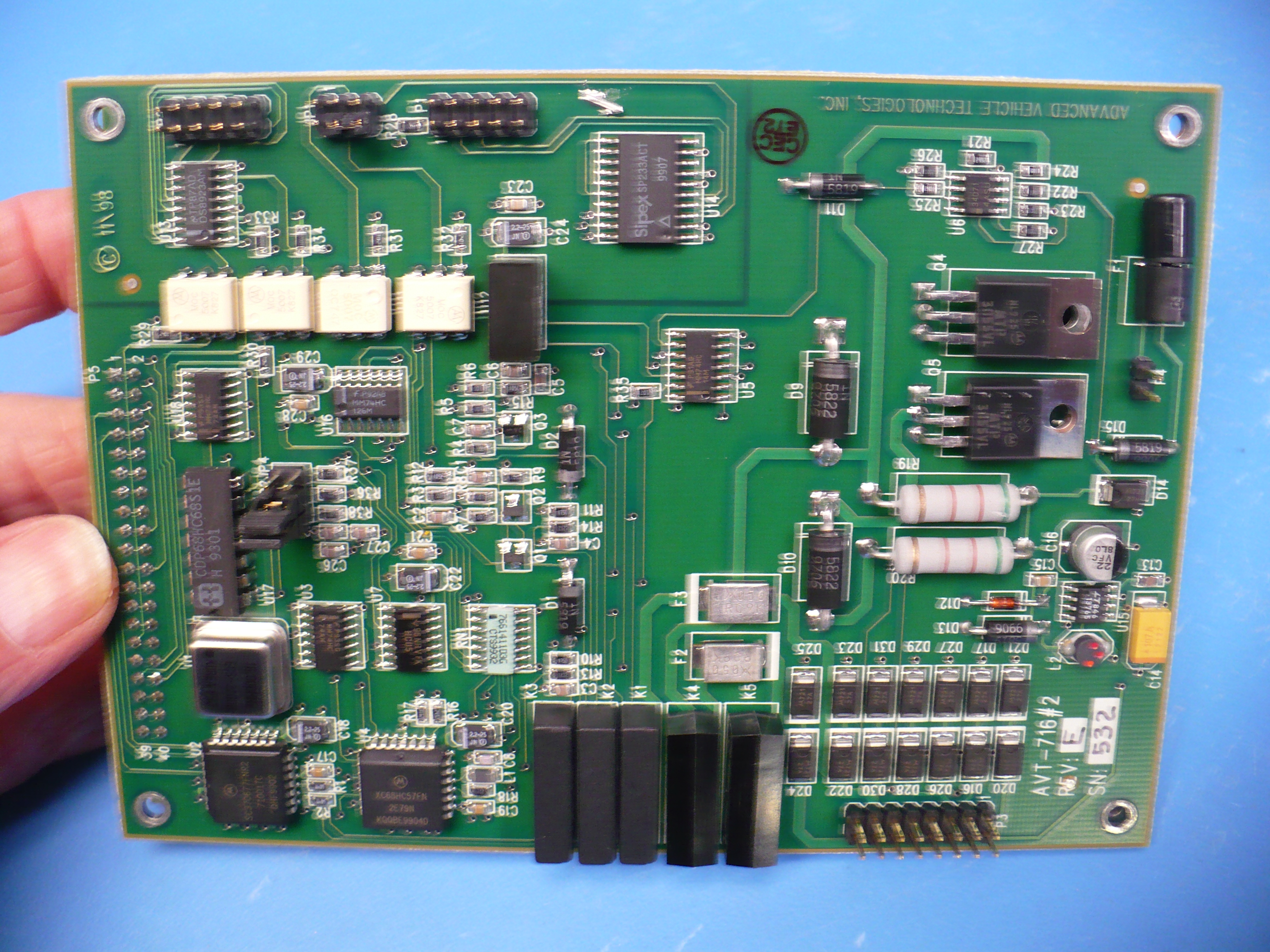

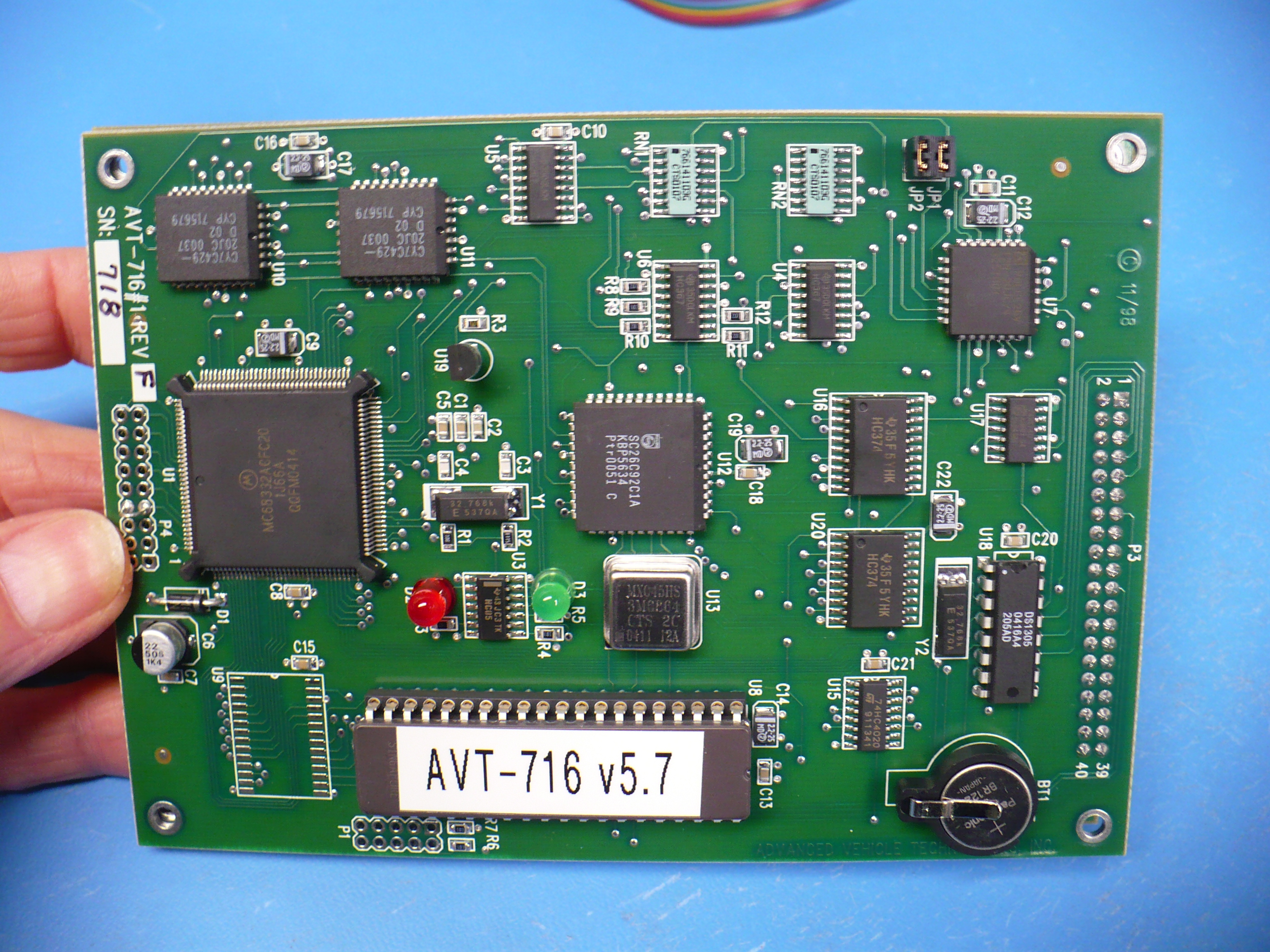

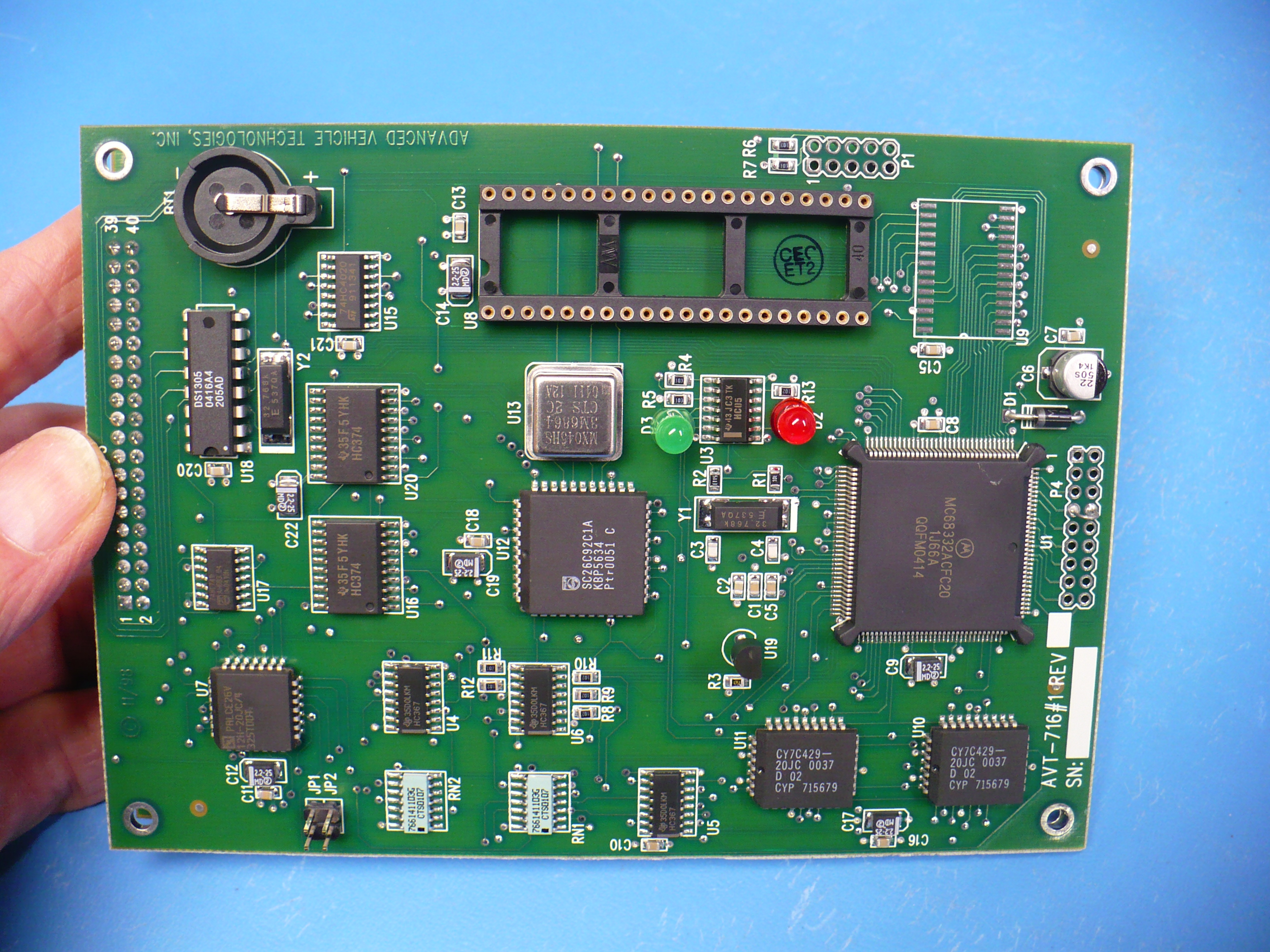

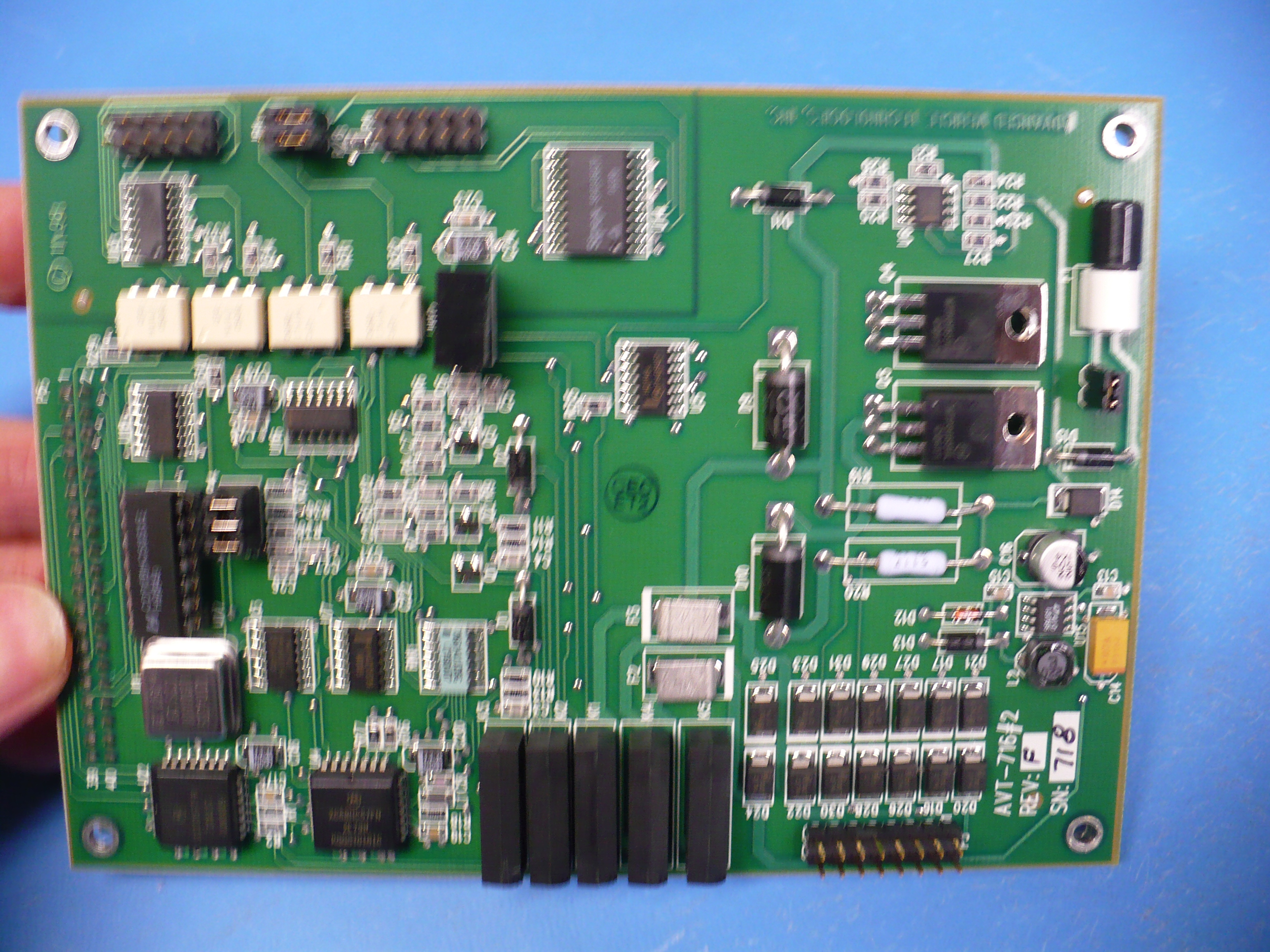

set of ribbon cables (two-row to D-sub) and one of the 'Jumper1' boards. There are qty. 9 board sets available. Full size images: Image #1a Image #1b Image #2a Image #2b Image #3a Image #3b Image #4a Image #4b Image #5a Image #5b Image #6a Image #6b Image #7a Image #7b Image #8a Image #8b Image #9a Image #9b Image #10 |
9 | US$ 50.00 |

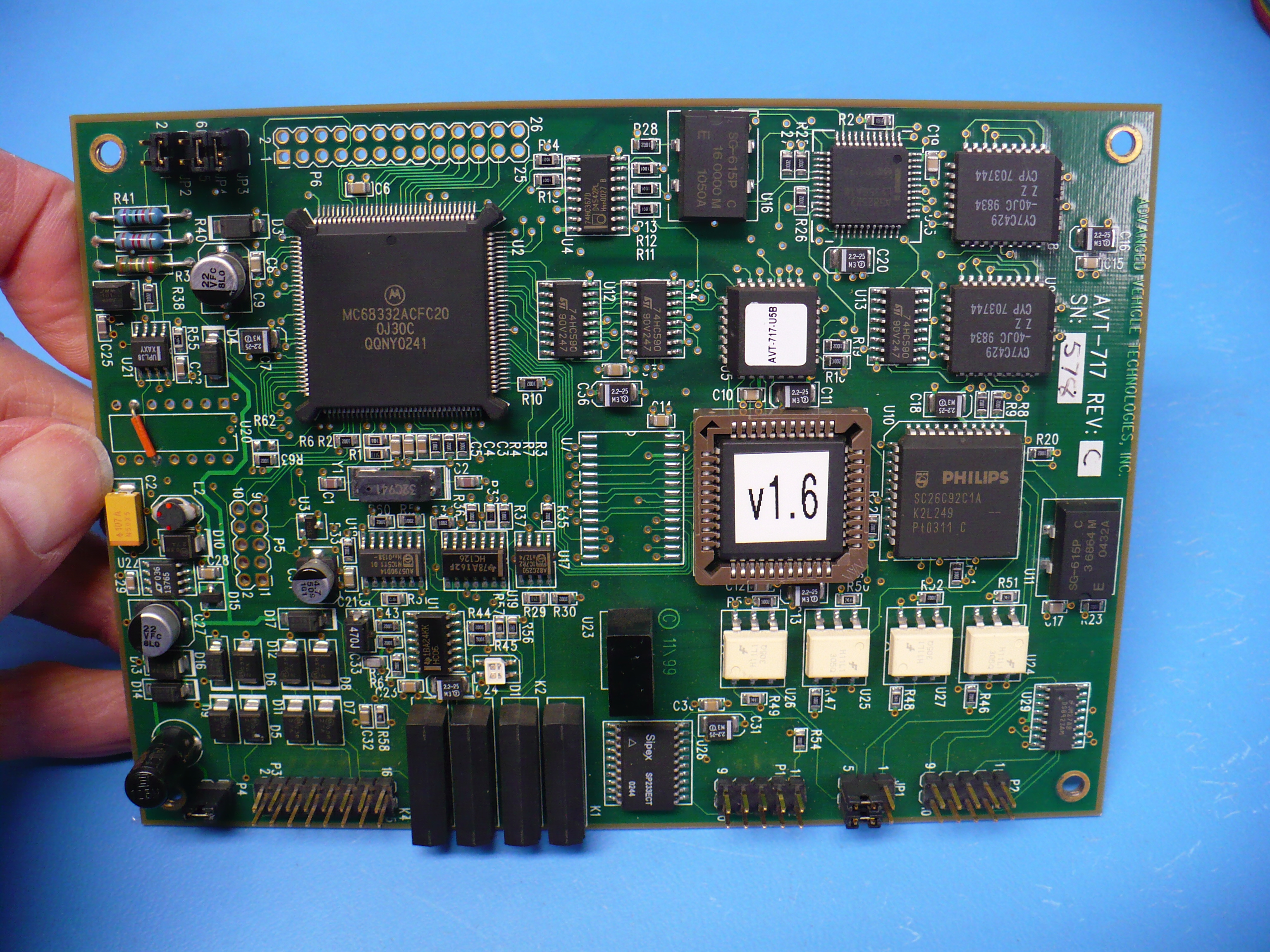

AVT-717 |
AVT-717 Interface. RS-232 or RS-422 to control computer.
Supports one channel of Classical CAN (high speed 2-wire or Single Wire CAN), one channel of LIN, and Ford UBP.
I will check that the hardware is the most recent configuration.
I will install the most recent firmware and test the board.
I will include a set of ribbon cables (two-row to D-sub).

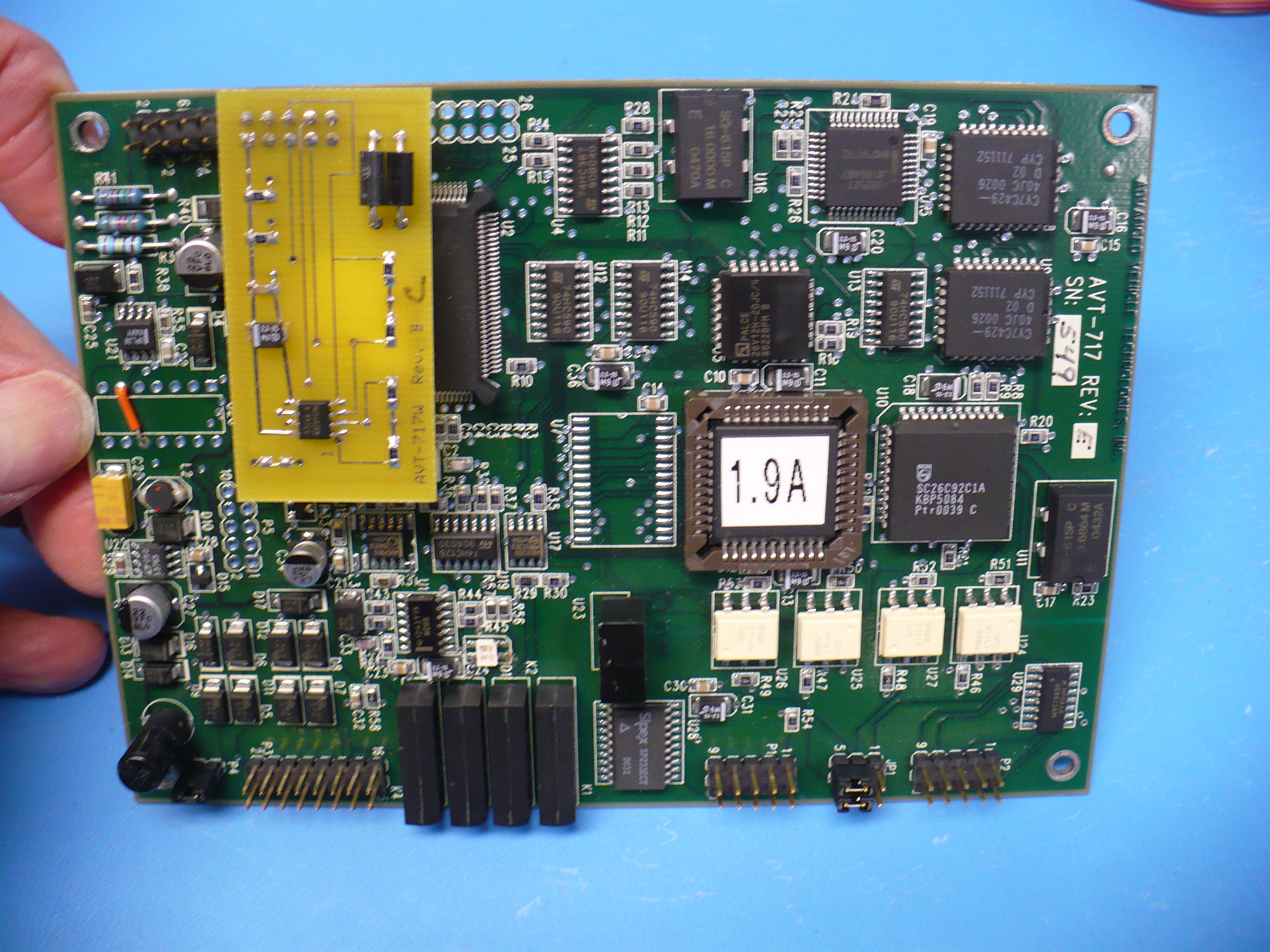

There are qty. 3 boards available. Full size images: Image #1 Image #2 Image #3 |
3 | US$ 50.00 |
AVT-822 |
AVT-822 Embedded (J1939) CAN Controller.
Supports:
One channel of Classical CAN.
One channel of J1708.
Several digital inputs.
Several digital outputs.
At least one channel of variable frequency digital output.
One UART debug or programming connector.
These are production boards.
Includes User's Manual and schematic.
Current source code available (on request).
Board only.
Free domestic US shipping.
Larger image: Image #1 |
193 | US$ 10.00 |
AVT-921 |
AVT-921 Interface. This is an 8-bit ISA card (install into an ISA bus computer).
Supports J1850 VPW (GM Class 2) and J1850 PWM (Ford SCP).
I will install the most recent firmware.

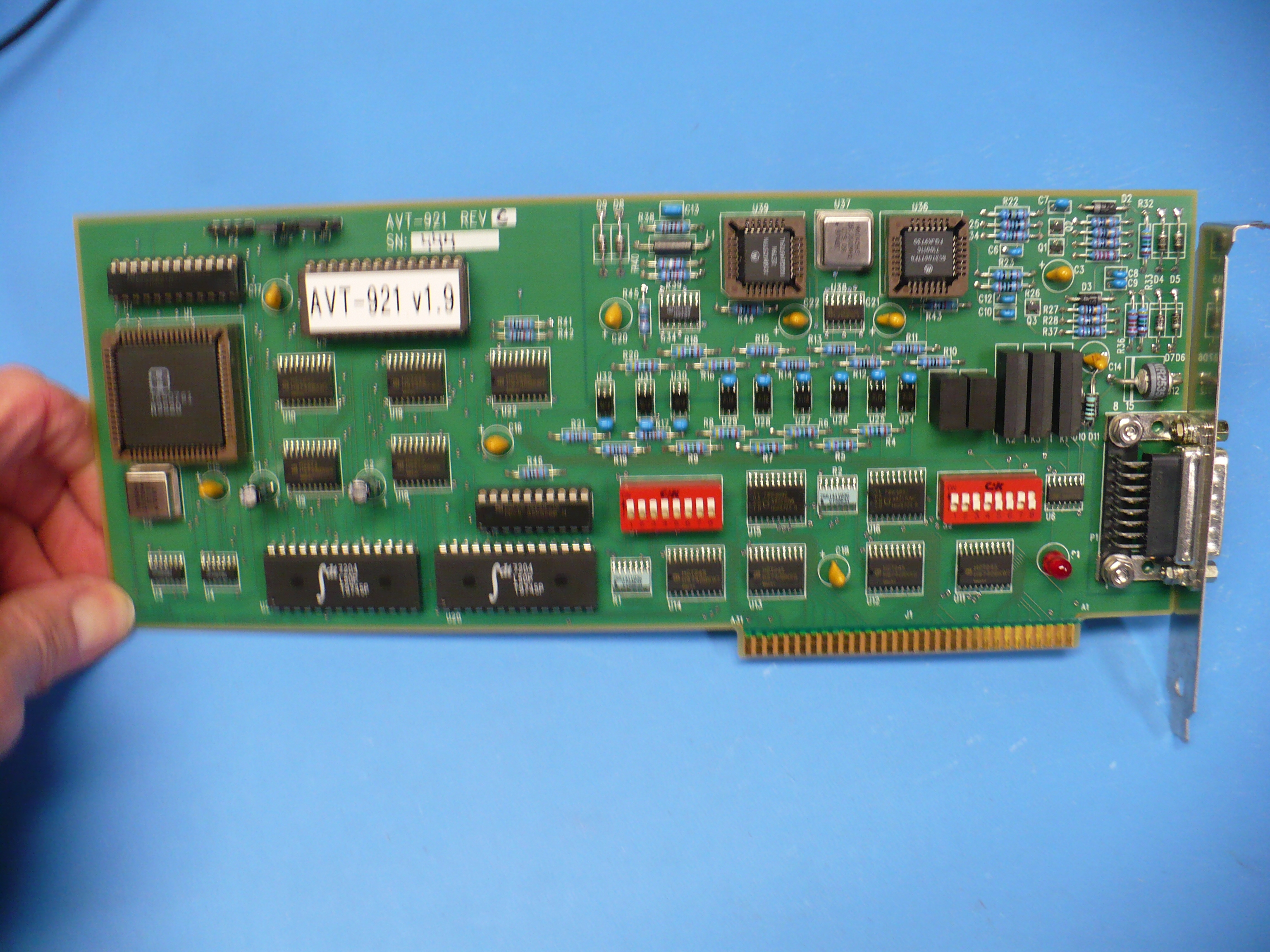

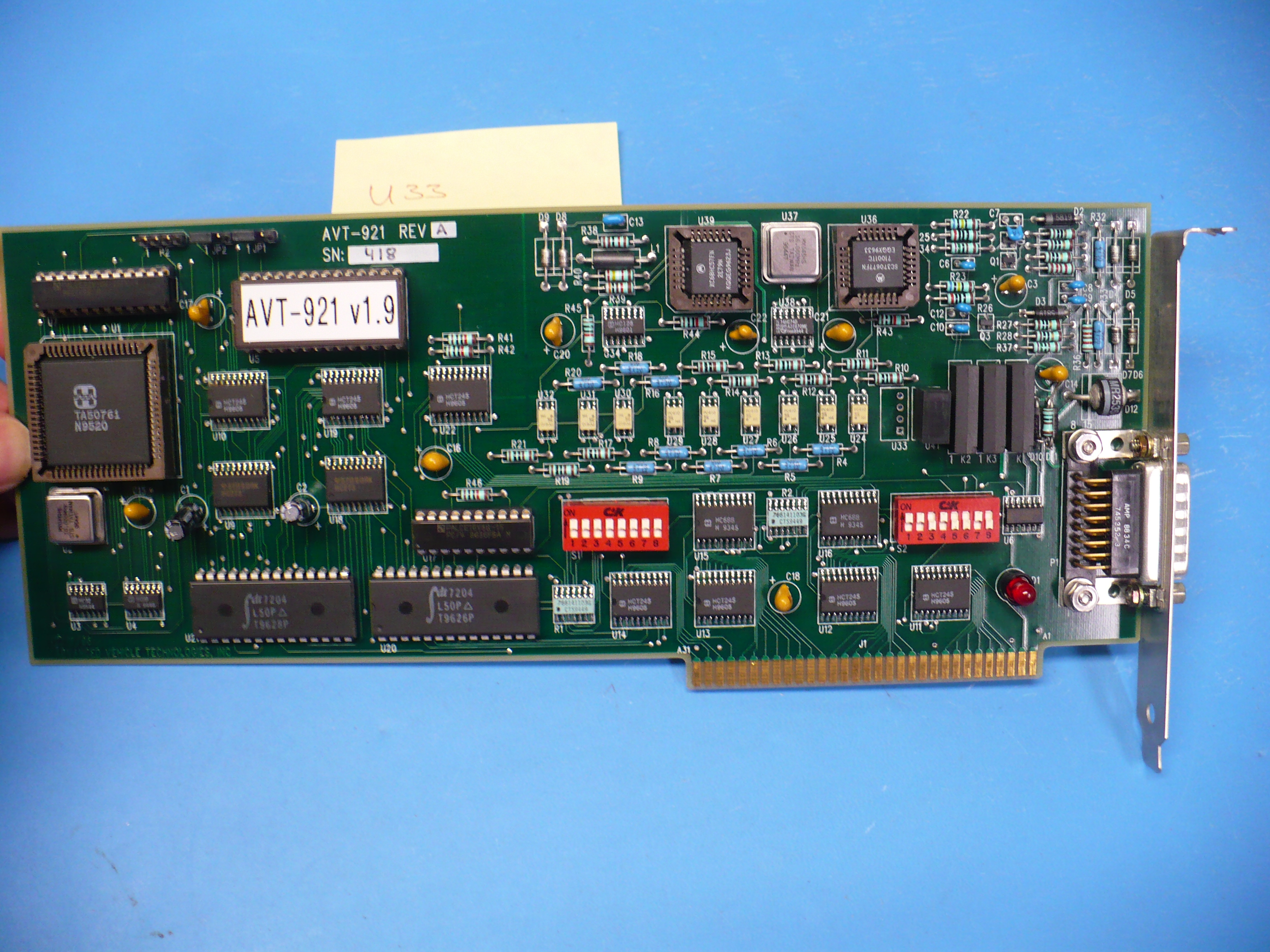

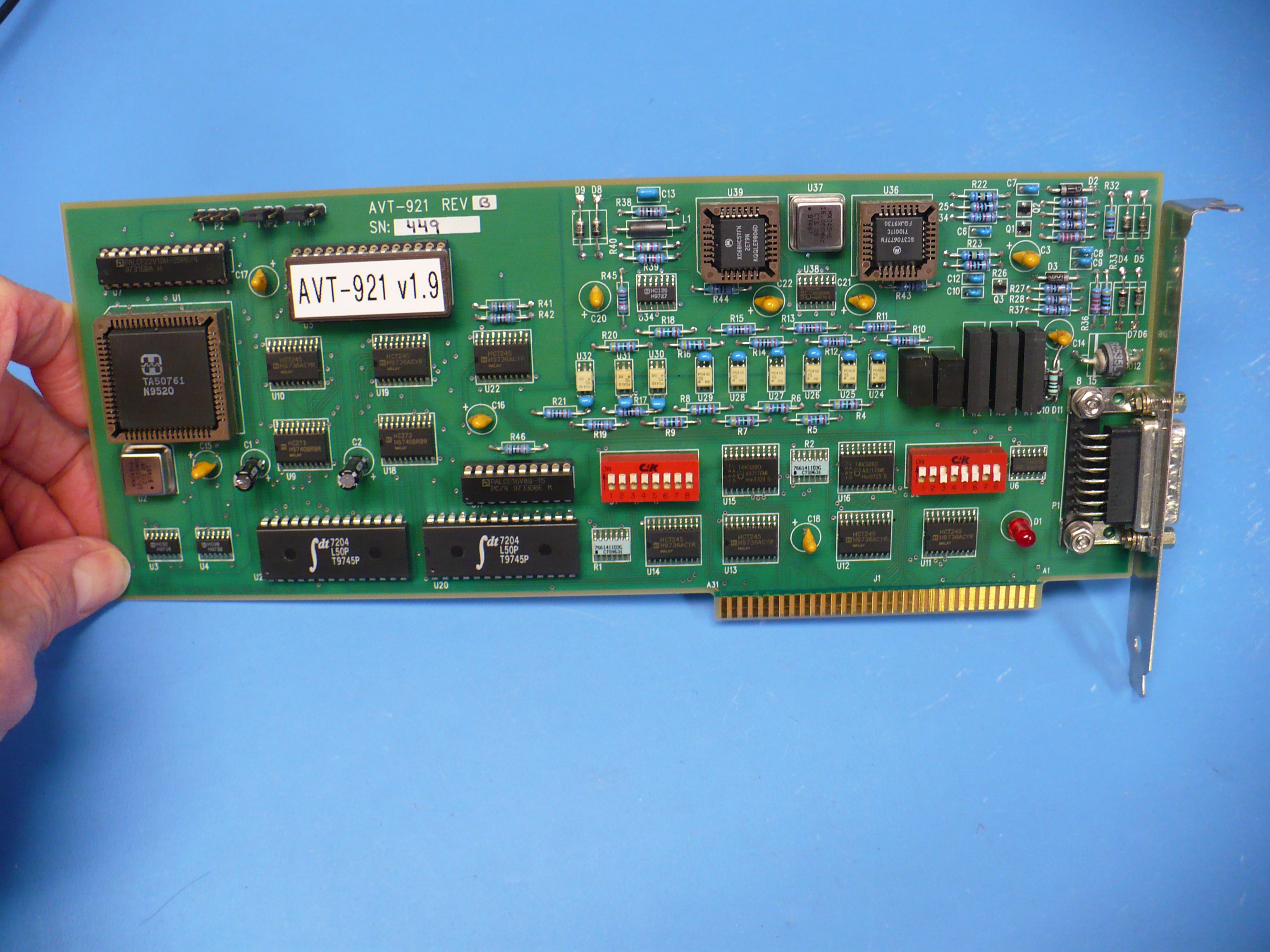

I will only test the unit if requested (and if I can). Full size images: Image #1 Image #2 Image #3 Image #4 Image #5 Image #6 |
6 | US$ 25.00 if not tested. US$ 100. if tested. |
AVT-931 |
AVT-931 Interface. This is an 8-bit PC/104 card.
Supports J1850 VPW (GM Class 2) and J1850 PWM (Ford SCP).
I will install the most recent firmware.
I test the board only if requested (and if I can).
I have two production boards available.

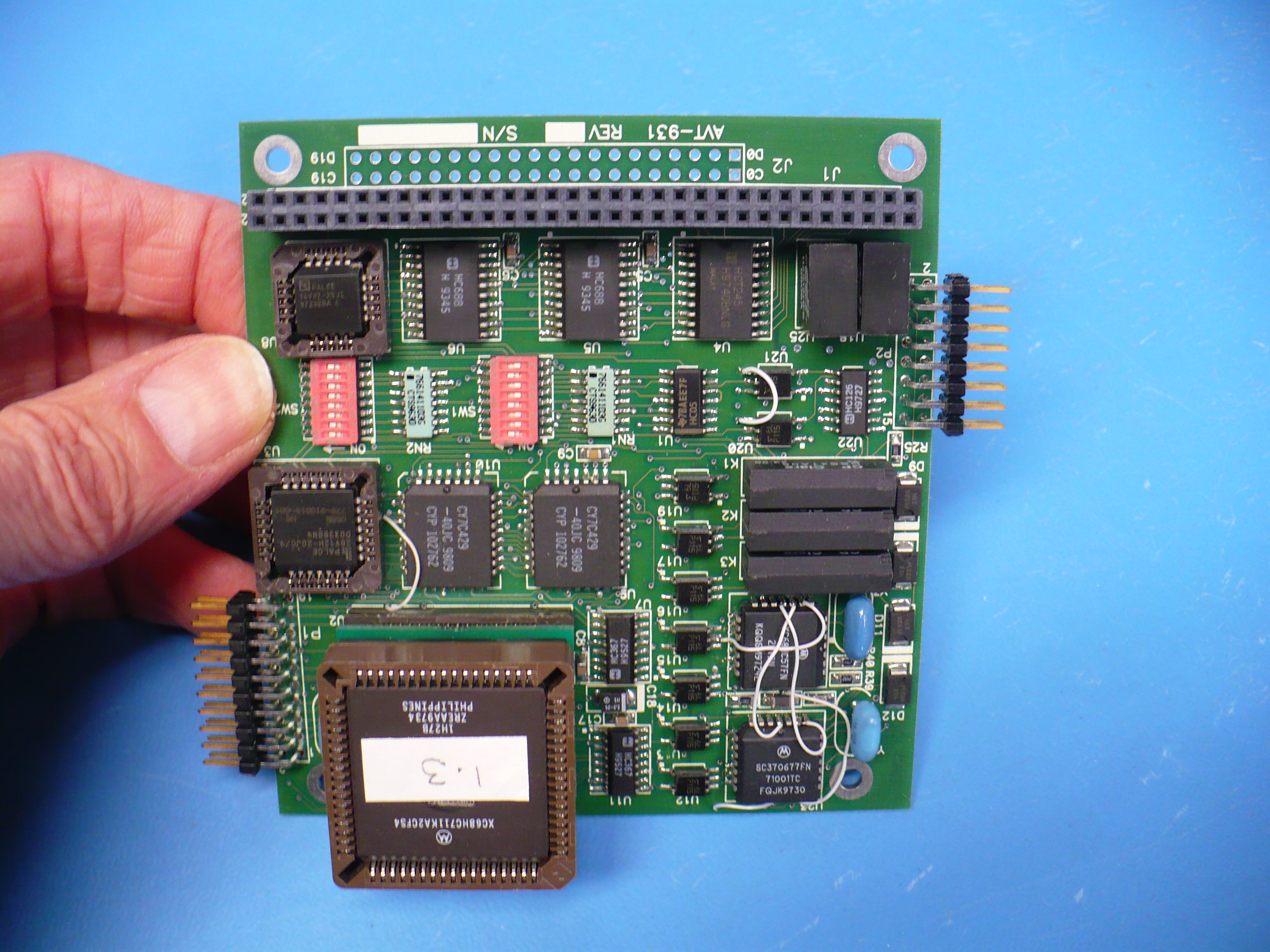

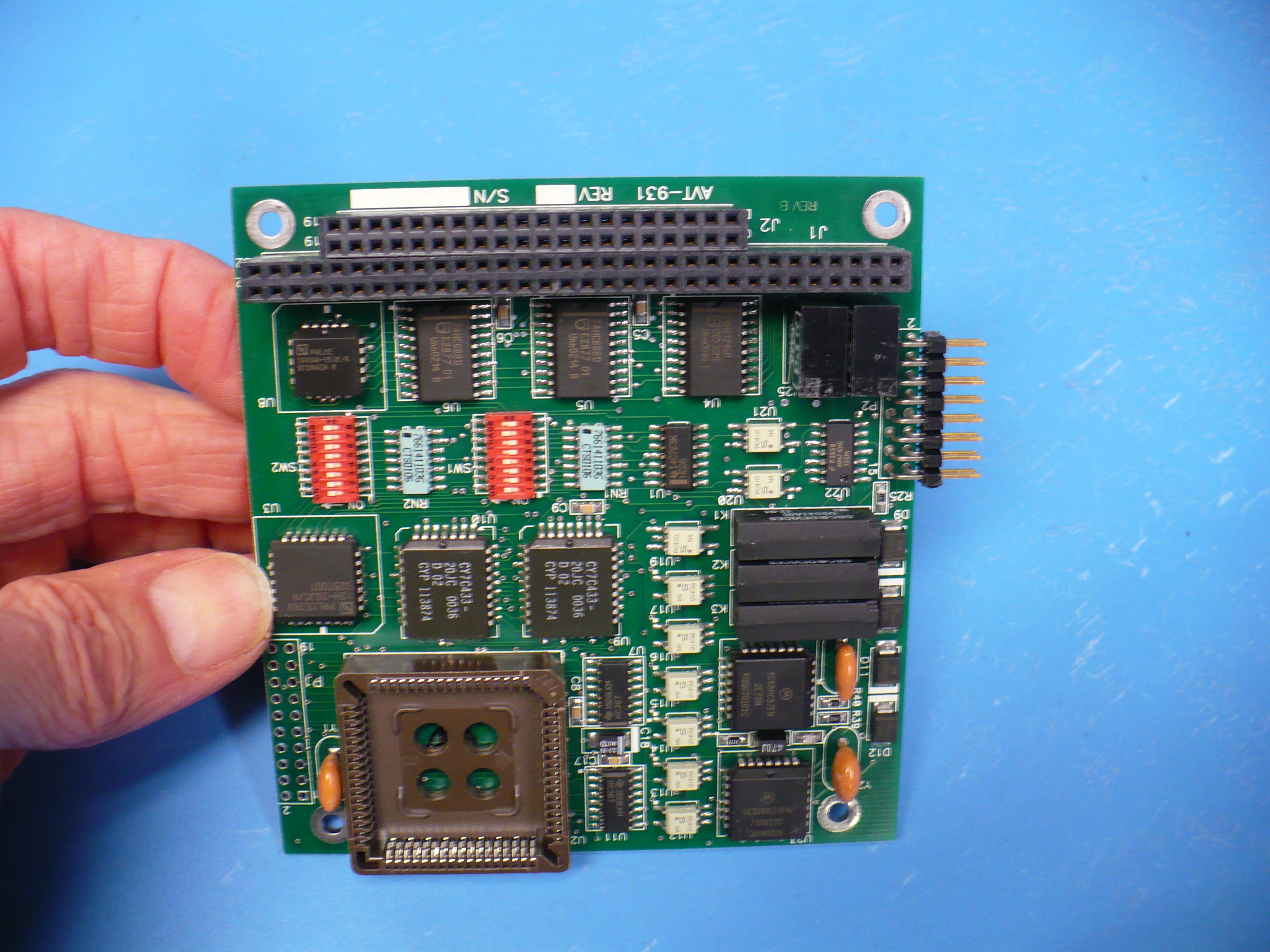

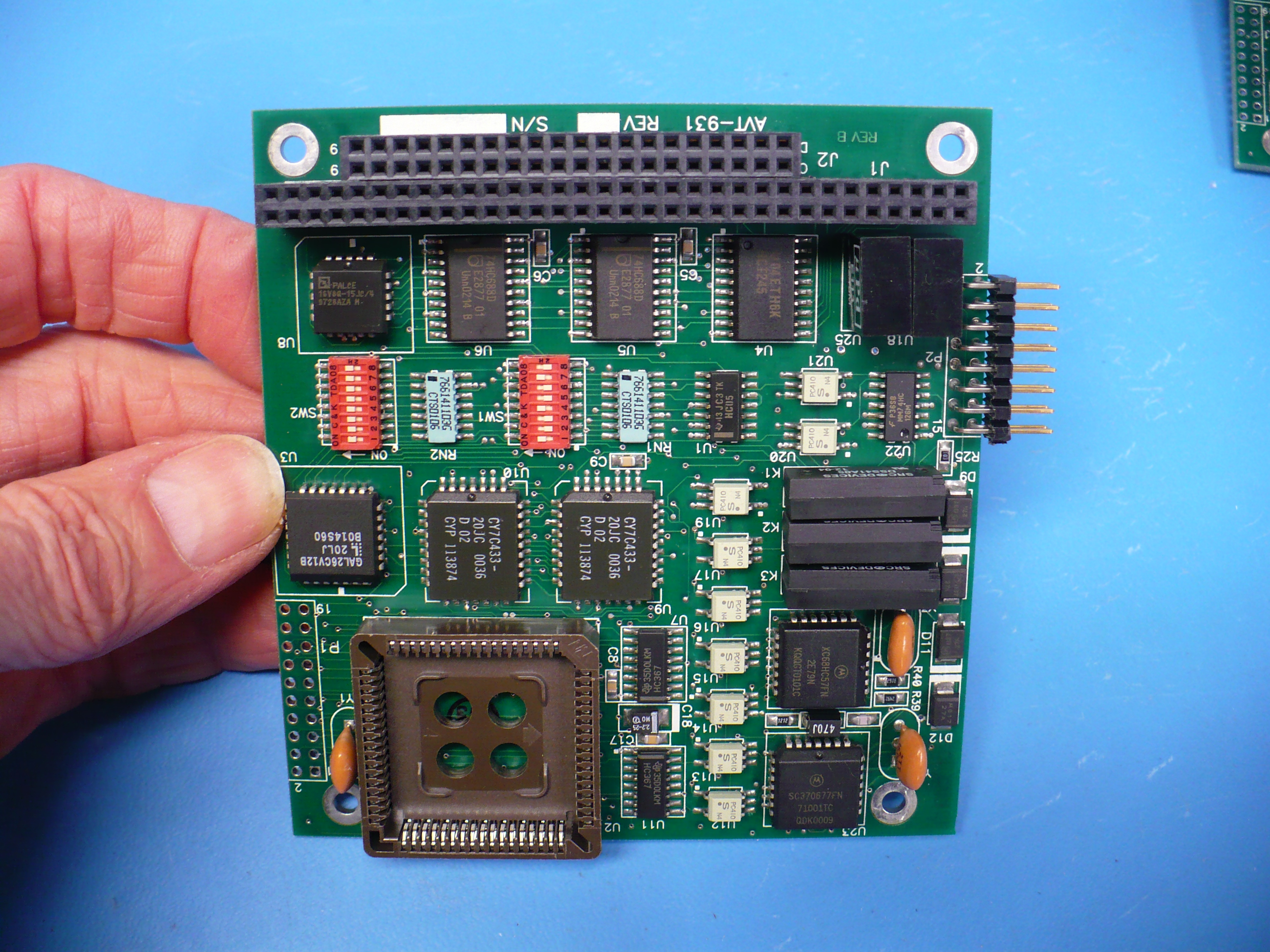

I have one engineering board available (at a reduced price). Full size images: Image #1 Image #2 Image #3 |
3 | US$ 25.00 if not tested. US$ 100. if tested. |
PC/104 Extender |

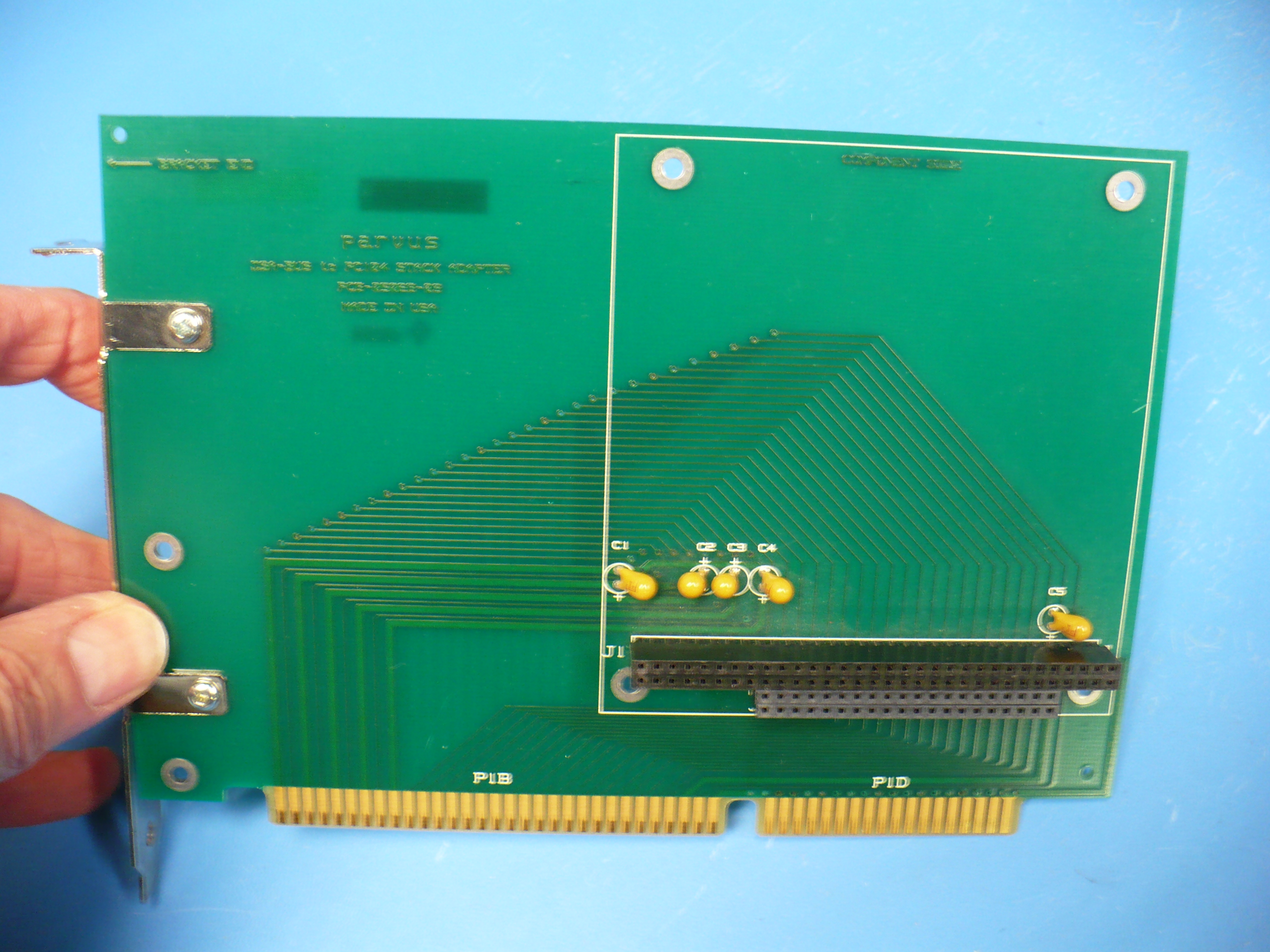

PC/104 extender card. 16-bit. For a 16-bit ISA slot. Shown empty and with an AVT-931 board (not included). One available. Full size images: Image #1 Image #2 |
1 | US$ 10.00 |
AVT-718 "W" |
CAN-B physical layer interface board. An add-on board for early
revision AVT-718 interface units. Brand new; fully functional;
with documentation. Empty boards are also available. |
5 and lots |
Free |
AVT-1850-2 |
Dash 2 add-on board for the AVT-1850 development board. Provides
a functional J1850 PWM (Ford SCP) interface. Uses Motorola SPI
comms link. Prototype wire-wrap board. I might be able to
supply sample software and schematic - on request. Fill size image: Image #1 Image #2 |
1 |
Free |
Documents |
A big stack of Vehicle Computer Network related documents. Photos of each document shown on this page: Auto Network Docs |
Lots |
Free |
Specifications |
A big stack of Vehicle Network specifications. Photos of each document shown on this page: Auto Network Specs |
Lots |
Free |
AVT-1850-3 |
I need to update this item ! I don't think I have this item any longer. Dash 3 add-on board for the AVT-1850 development board. Provides a functional J1850 VPW interface (using the XC68HC57 device - supporting 4x mode). Prototype wire wrap board. Software and documentation can be provided on request. |
? |
Free |
AVT-1850-4 |
I need to update this item ! I don't think I have this item any longer. Dash 4 add-on board for the AVT-1850 development board. Provides a functional J1850 VPW interface (using the HIP7010 device). Prototype wire wrap board. Software and documentation can be provided on request. |
? |
Free |
ALDL (716) | ALDL add-on board for the AVT-716; fully populated; with connector to 716 #1 board. First revision. Hand built. Status of this item is unknown. |
? |
Free |
ALDL (716) | ALDL add-on board for the AVT-716; fully populated; with connectors; no interconnect cables; revision "C"; with short circuit protection. Status of this item is unknown. | ? | Free |
ALDL (716) | ALDL add-on board for the AVT-716; empty PCB; revision "C"; with short circuit protection. Status of this item is unknown. | ? | Free |
