At a swap meet in the fall of 2022 (I think) I bought a "Mighty MIG 101" MIG welder. I got it home and cleaned it up. I did some on-line searching for a manual. No luck. I discoverd two interesting items. One: It was made in Italy and, apparently, sold in the USA under several different names. I found one manual that appears to be 'pretty close' and includes a unit level schematic. Handy MIG 101 manual Two: I read a forum where at least two people posted that they had the same welder and that the control board for the wire feed motor had failed. One person described the failure as two resistors on the board had burned out and could not be identified. I thought it would be a good idea to document that board before, and in-case, mine burned out. Before I did anything with my new welder, I removed the control board (for the wire feed motor) and documented it. Then I put it all back together, cleaned the enclosure, inside and out, and tested the wire feed. It didn't work; the wire would not feed. After a little troubleshooting I found that one of the wires on the "J1" connector (body) had come loose. The connector (body) that mates to "J1" on the control board is an "IDC" type (Insulation Displacement Connector). Using a small flat bladed screw driver I merely pushed all the wires into the connector. That fixed the wire feed problem. To be honest, I still have not had time to fully test the welder by 'welding' any metal. But I'm sure it will work. While troubleshooting my "loose wire" problem I made some notes about the internals of the Mighty MIG 101. This wrote this page to present the information I gained working on my Mighty MIG 101 welder. Maybe it will help someone, someday. I'm not going to write an explanation of how the control board works. I'm simply posting my notes and pictures "as-is". If you have any comments or questions, write me. I'll answer as soon as I reasonably can. MRILEY@AVT-HQ.COM Good luck, Mike. |
|
Unit Front
Full Size Image |
|
|

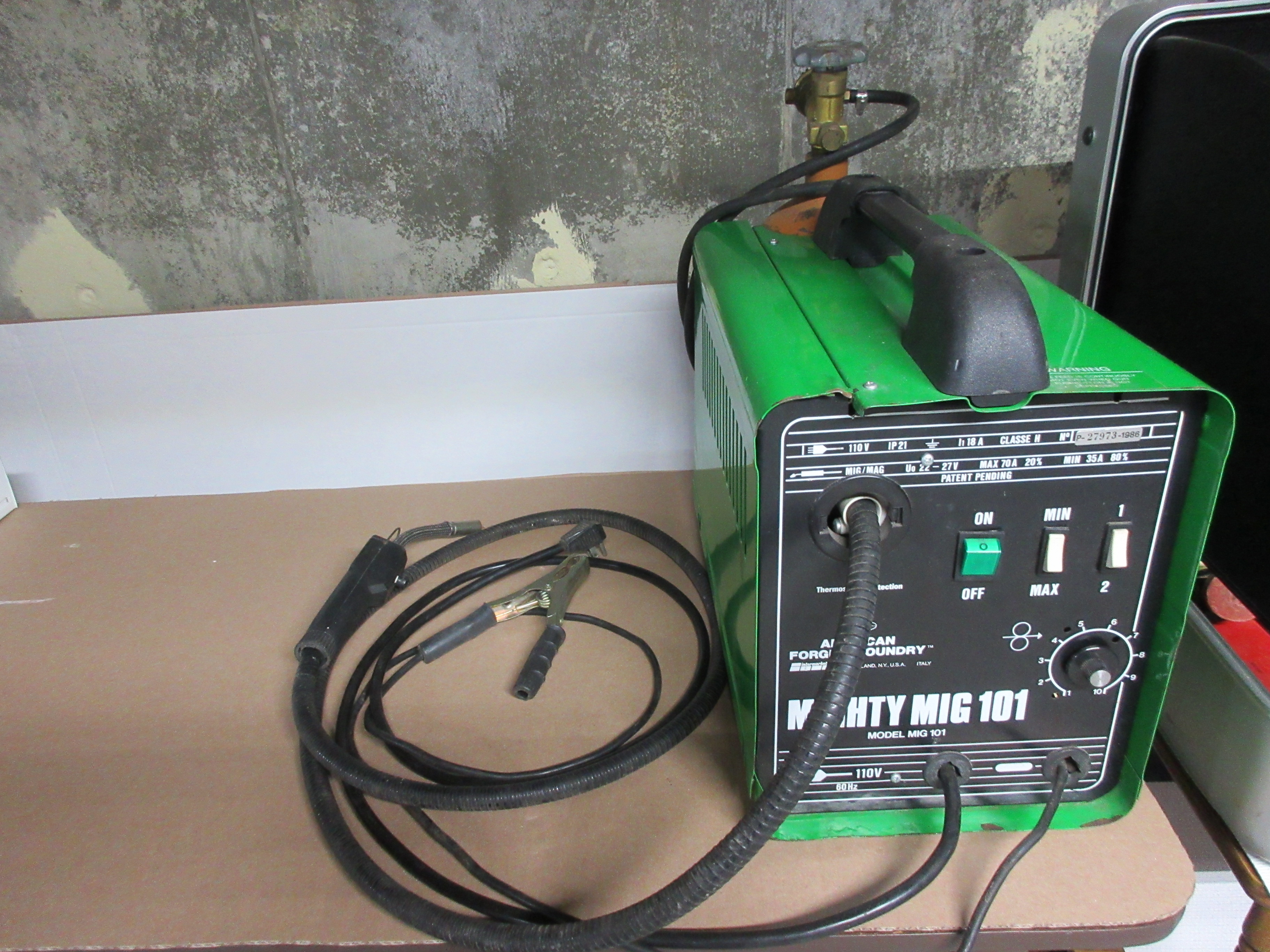

Unit Overall
Full Size Image |
|
|

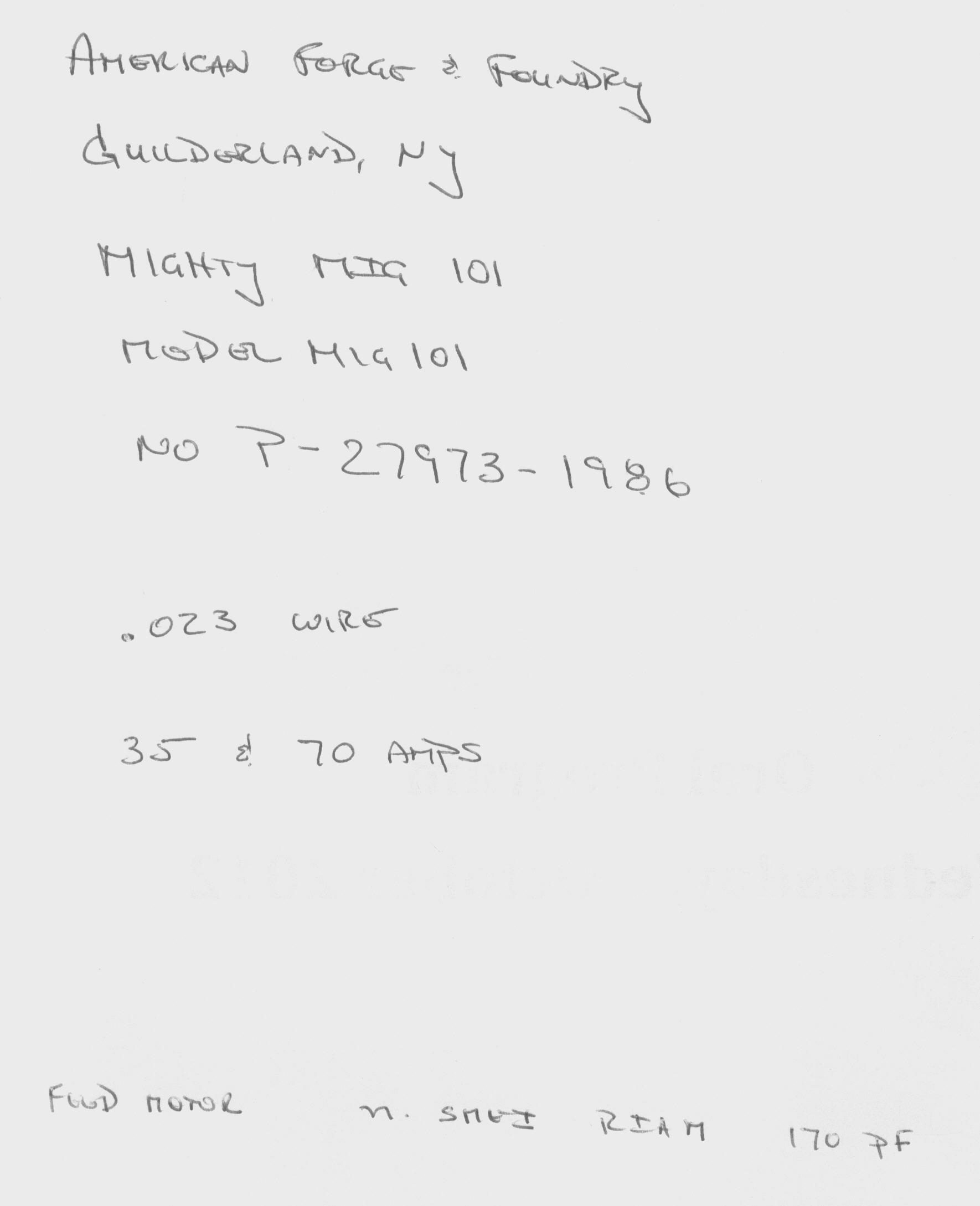

Unit Notes
Full Size Image |
|
|

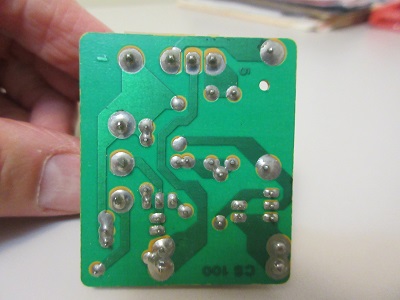

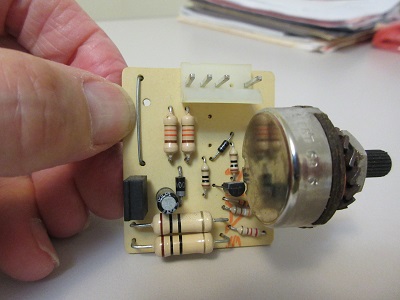

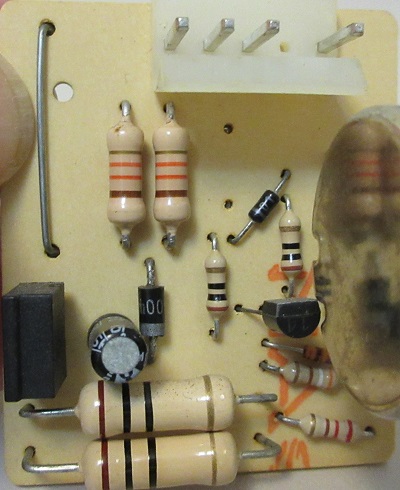

Control Board (wire feed) Full Size Image |
|
|
Control Board (wire feed) Full Size Image |
|
|
Control Board (wire feed) Full Size Image |
|
|
Control Board (wire feed) Full Size Image |
|
|
Control Board (wire feed) Full Size Image |
|
|
Control Board (wire feed) both sides Full Size Image |
|
|
Control Board (wire feed) Schematic Full Size Image |
|
|
Control Board (wire feed) Annotated with Parts List Full Size Image |
|
|
Control Board (wire feed) Hand Notes Full Size Image |
|
|
Control Board (wire feed) J1 Notes Full Size Image |
|
|

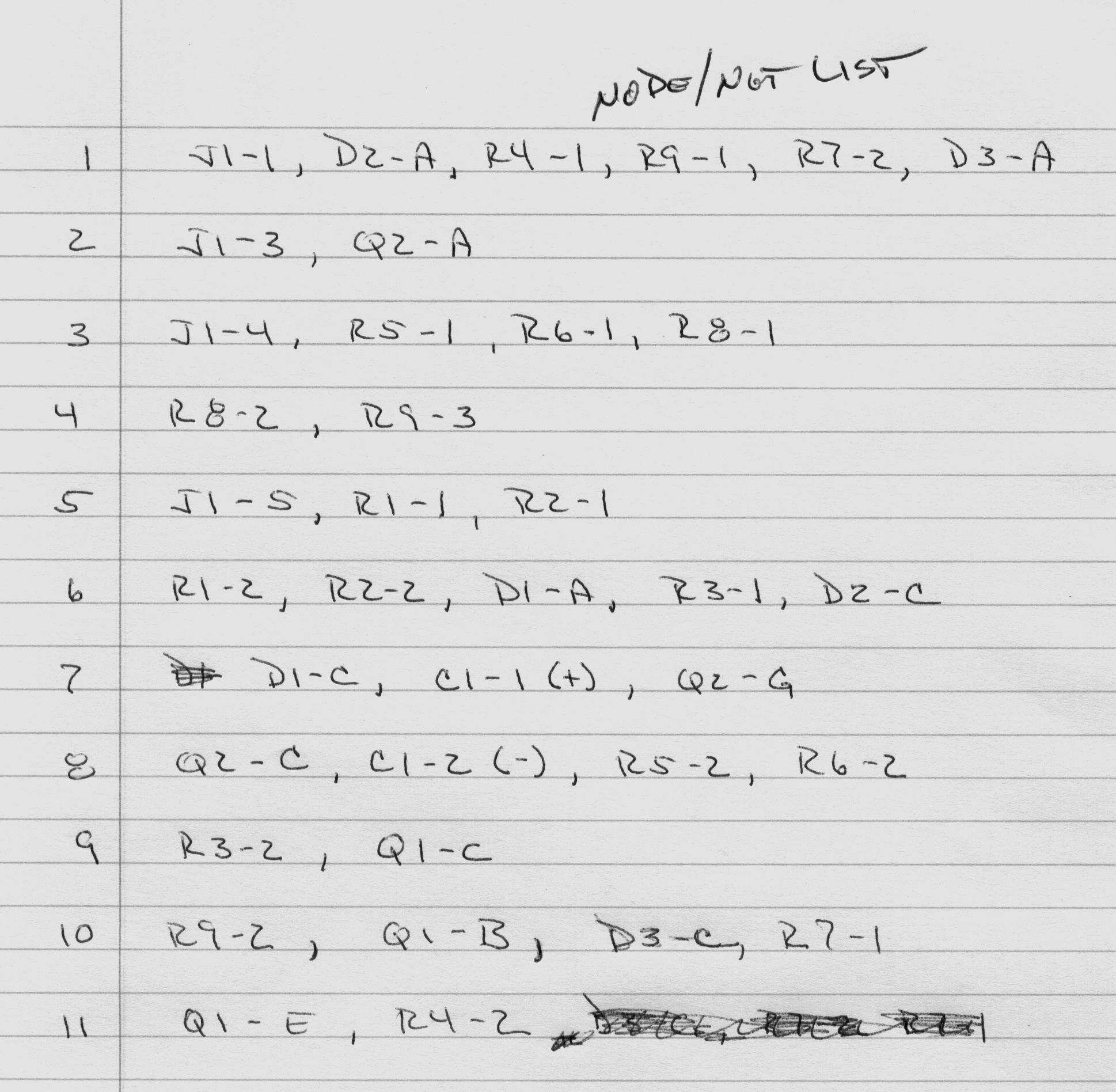

Control Board (wire feed) Net List Full Size Image |
|
|

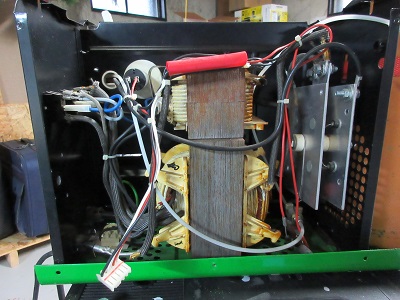

Unit Internal Left Side Full Size Image |
|
|
Unit Schematic Full Size Image |
|
|
Unit Internal Left Side Full Size Image |
|
|
Unit Internal Top Full Size Image |
|
|
Unit Internal Top Front Full Size Image |
|
|

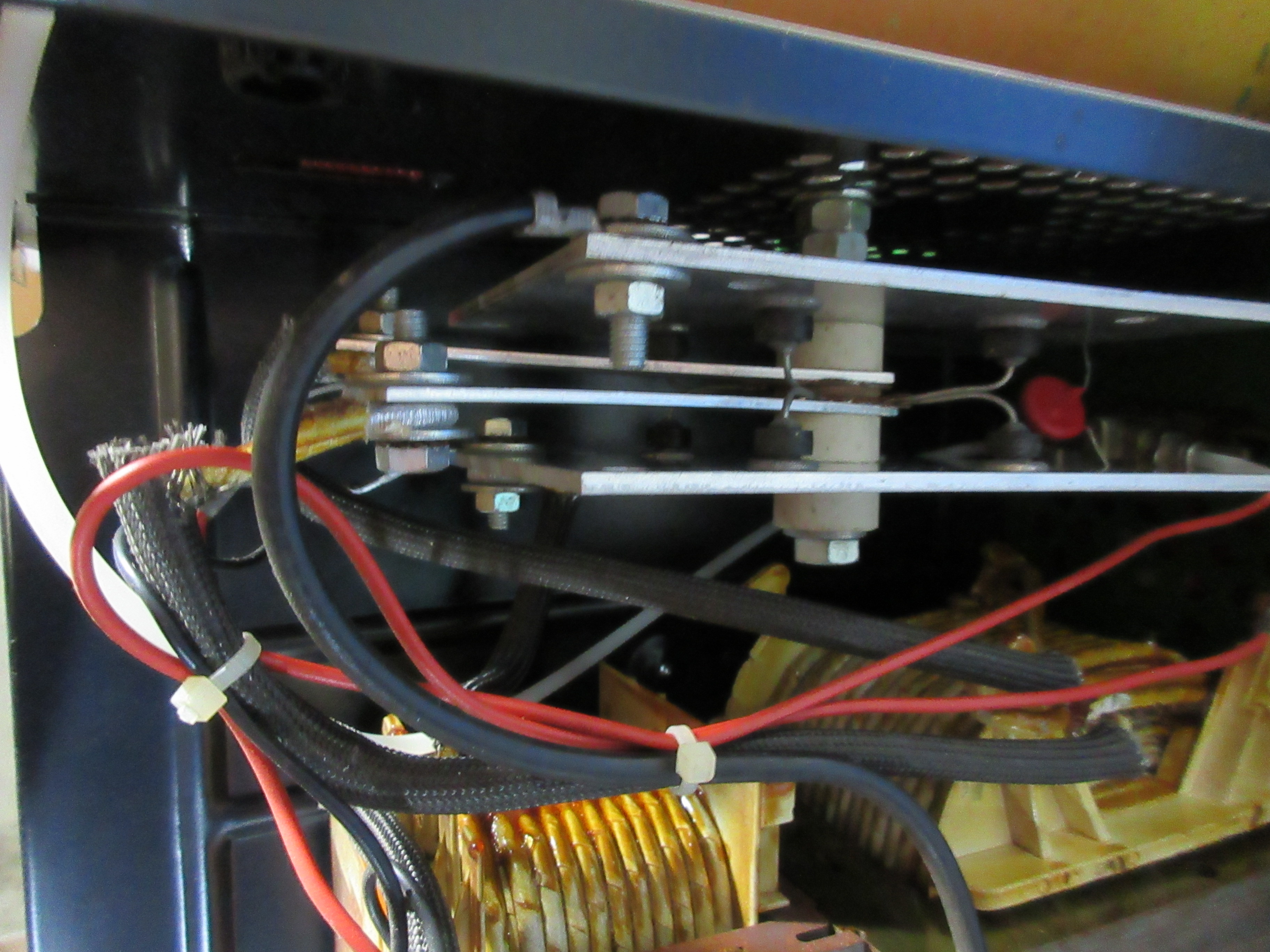

Unit Internal Rectifier Assembly Full Size Image |
|
|
Unit General Notes and gas valve note Full Size Image |
|
