AVT-423

Multiple protocol interface.
Ethernet connection to client computer.
Status: In production.

Protocols supported:

CAN0: non-FD, 2-wire,(ISO 11898, J1939, and others).

CAN1: non-FD, 2-wire, (ISO 11898, J1939, and others) or Single Wire (SWC) (J2411).

CAN ISO 15765 for CAN0 and CAN1.

.

CAN2: CAN-FD, 2-wire, (ISO 11898, J1939, and others).

CAN3: CAN-FD, 2-wire, (ISO 11898, J1939, and others).

.

LIN0: LIN or KWP (software selected).

Support for all versions of LIN as either Master or Slave.

Keyword Protocol 2000, ISO 14230, ISO 9141.

.

LIN1: LIN or KWP (software selected) .

Support for all versions of LIN as either Master or Slave.

Keyword Protocol 2000, ISO 14230, ISO 9141.

.

LIN2 thru LIN7: LIN

Support for all versions of LIN as either Master or Slave.

(Only when AVT-424 is also installed.)

.

User programmable automatic features.

AVT-423 Product Data Sheet .

AVT-423 Technical Documentation - refer to the Product Documents page.

AVT-423 Firmware Versions.
AVT-423 Hardware Revisions, Configurations, Order Information, and Photos

AVT-424

The AVT-424 LIN Expansion board is a mezzanine or daughter board that is installed on top of the AVT-423 multiple interface board.
Communications to the client computer are via Ethernet - through the AVT-423 board.
It is equipped with six channels of LIN. This gives the AVT-423 eight total channels of LIN.

It is usually ordered with the AVT-423.

However, it can be installed at a later time.
Status: In stock.

AVT-424 Firmware Versions.
AVT-424 Hardware Revisions and Photos

AVT-425

Multiple protocol interface.
Ethernet connection to client computer.
Status: In production.

Protocols supported:

CAN0: non-FD, 2-wire,(ISO 11898, J1939, and others).

CAN1: non-FD, 2-wire, (ISO 11898, J1939, and others) or Single Wire (SWC) (J2411).

CAN ISO 15765 for CAN0 and CAN1.

.

CAN2: CAN-FD, 2-wire, (ISO 11898, J1939, and others).

CAN3: CAN-FD, 2-wire, (ISO 11898, J1939, and others).

.

LIN0: LIN or KWP (software selected).

Support for all versions of LIN as either Master or Slave.

Keyword Protocol 2000, ISO 14230, ISO 9141.

.

LIN1: LIN or KWP (software selected) .

Support for all versions of LIN as either Master or Slave.

Keyword Protocol 2000, ISO 14230, ISO 9141.

.

LIN2 thru LIN7: LIN

Support for all versions of LIN as either Master or Slave.

.

User programmable automatic features.

AVT-425 Technical Documentation - refer to the Product Documents page.

AVT-425 Firmware Versions.
AVT-425 Hardware Revisions, Configurations, Order Information, and Photos

AVT-853

Multiple protocol interface. Low cost.
Ethernet connection to the client computer.
Direct replacement for the AVT-843 (redesigned for vastly improved throughput).
Fully capable interface.
Status: In stock.

Protocols supported:

CAN0: 2-wire (CAN-C, ISO 11898, J1939, and others).

CAN4: 2-wire CAN or GM Single Wire CAN (SWC) (J2411).

CAN ISO 15765 support (multi-frame messaging) for both channels.

J1850 VPW, GM Class 2, 1x and 4x modes, block transfers.

Fully supports GM-LAN.

K-Line communications (Keyword Protocol 2000, ISO 14230, ISO 9141).

LIN as both Master or Slave (versions 1.2, 1.3, 2.0, 2.1, 2.2A).

3 channels of analog to digital input (installed on request).

User programmable automatic features.

User accessible EEPROM with security features.

In-stock for immediate delivery.

AVT-853 Technical Documentation - refer to the Product Documents page.

AVT-853 Firmware Versions (same as AVT-852)
AVT-853 Hardware Revisions, configuration, and order information
AVT-853 photos

AVT-852

Multiple protocol interface. Low cost.
USB connection to host computer.
Direct replacement for the AVT-842 (redesigned for vastly improved throughput).
Fully capable interface with room to grow in functionality and capability.
Status: At End Of Life. None available.

Protocols supported:

CAN0: 2-wire (CAN-C, ISO 11898, J1939, and others).

CAN4: 2-wire CAN or GM Single Wire CAN (SWC) (J2411).

CAN ISO 15765 support (multi-frame messaging) for both channels.

J1850 VPW, GM Class 2, 1x and 4x modes, block transfers.

Fully supports GM-LAN.

K-Line communications (Keyword Protocol 2000, ISO 14230, ISO 9141).

LIN as both Master or Slave (versions 1.2, 1.3, 2.0, 2.1, 2.2A).

3 channels of analog to digital input (installed on request).

User programmable automatic features.

User accessible EEPROM with security features.

In-stock for immediate delivery.

Available as an OEM unit and to industrial and professional customers only.

AVT-852 Technical Documentation - refer to the Product Documents page.

AVT-852 Firmware Versions
AVT-852 Hardware Revisions, configuration, and order information
AVT-852 photos

AVT-841

Multiple protocol interface. Low cost.
RS-232 serial connection to host computer.
Fully capable interface with room to grow in functionality and capability.
Production units with serial number 00753, and above, are RoHS compliant.
Status: At End Of Life. A few units are available.

Protocols supported:

CAN, 2-wire (CAN-C, ISO 11898, J1939, and others).

CAN, GM Single Wire CAN (SWC) (J2411).

CAN ISO 15765 support (multi-frame messaging).

J1850 VPW, GM Class 2, 1x and 4x modes, block transfers.

Fully supports GM-LAN.

K-Line communications (Keyword Protocol 2000, ISO 14230, ISO 9141).

LIN as both Master or Slave (versions 1.2, 1.3, 2.0, 2.1, 2.2A).

3 channels of analog to digital input.

User programmable automatic features.

User accessible EEPROM with security features.

In-stock for immediate delivery.

Available as an OEM unit and to industrial and professional customers only.

AVT-841 Technical Documentation - refer to the Product Documents page.

AVT-841 Firmware Versions
AVT-841 Hardware Revisions
AVT-841 photos.

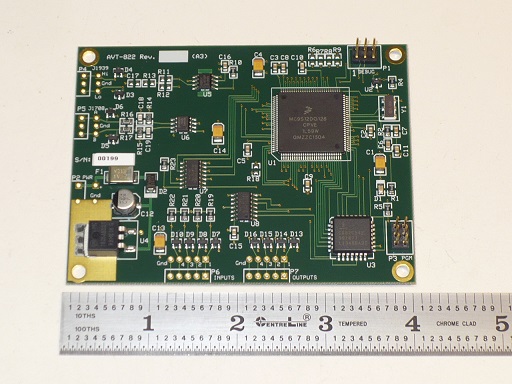

AVT-822

CAN (J1939) & J1708 Controller or Embedded Controller or "Your Project" board.

Originally designed as a special unit for one customer. Code was developed to monitor J1939 for specific data, change digital outputs accordingly, generate specific J1939 messages and data in accordance with certain digital inputs. Included a J1708 interface. Plenty of memory and I/O to grow. Several hundred were built; but the original customer purchased fewer than 100 before they (apparently) went out of business.

The board uses the Motorola/Freescale/NXP MC9S12DG128CPVE microcontroller (with 2 CAN channels, 2 serial channels, 128K FLASH, 2K EEPROM, 8K RAM). Also included on the board is the Intersil CS82C54Z Programmable Interval Timer (with 3 independent 16-bit counter / timers). There are also 4 buffered digital inputs and 4 buffered digital outputs.

I've written a Hardware Description document with technical information about the hardware platform. Also included is some information about the tools I used for software/firmware development.

AVT-822 Hardware Description document (PDF 1191 KBytes).

I have also posted the Interface Control Document (manual) for the firmware I developed for one customer.

AVT-822 ICD (PDF 143 KBytes).

Additional information may be available, on specific request.

These boards are priced to move quickly.

Available as board-only (no enclosure).
Status: In-stock.

OBD-II Cable

J1962 connector on one end (mates to connector in the vehicle).
DA-15S connector on other end (an industry standard connector).
Status: Only some 10-foot long cables are available. No plans to stock more of either.
- 3 feet long (~1 meter).
- 10 feet long (~3 meters).

OBD-II Cable Summary of revisions.
Wiring diagrams.
Photo of cable.
Photo of each connector.

AVT-718

Multiple protocol interface.
RS-232 or RS-422 serial connection to host computer.
Status: Out of production. Out of stock.

Protocols supported:

CAN, 2-wire (known as: CAN-C or ISO 11898 or J1939 or J2284)
Alternate termination schemes are available to meet various requirements.

Ford Motor Company approved network interface

CAN, 2-wire (known as: CAN-B or ISO 11519)

CAN, Single Wire CAN (known as: SWC or J2411)

CAN ISO 15765 support (multi-frame messaging).

J1850 VPW (GM Class 2 compliant and DaimlerChrysler PCI)

J1850 PWM (Ford SCP compliant)

Keyword Protocol 2000 (ISO 14230) [compatible with ISO 9141-2]

Ford's UBP (UART Based Protocol)

LIN as both Master or Slave (versions 1.2, 1.3, 2.0, 2.1, 2.2A).

KIE: K-line Inverted Echo mode.

GM's ALDL or UART protocol; +VBATT (+12v) version only.

AVT-718 Technical Documentation

AVT-718 Data Sheet (PDF 142K)
AVT-718 Firmware Versions
AVT-718 Hardware Revisions
AVT-718 Photo 1 (board in enclosure) (84K)
AVT-718 Photo 2 (board with mounting brackets) (122K)

AVT-418

Multiple protocol interface.
Ethernet connection to host computer.
Status: Out of production. Some units are available. Contact me.

Protocols supported:

CAN, 2-wire (known as: CAN-C or ISO 11898 or J1939 or J2284)
Alternate termination schemes are available to meet various requirements.

Ford Motor Company approved network interface

CAN, 2-wire (known as: CAN-B or ISO 11519)

CAN, Single Wire CAN (known as: SWC or J2411)

CAN ISO 15765 support (multi-frame messaging).

J1850 VPW (GM Class 2 compliant and DaimlerChrysler PCI)

J1850 PWM (Ford SCP compliant)

Keyword Protocol 2000 (ISO 14230) [compatible with ISO 9141-2]

Ford's UBP (UART Based Protocol)

LIN as both Master or Slave (versions 1.2, 1.3, 2.0, 2.1, 2.2A).

KIE: K-line Inverted Echo mode.

GM's ALDL or UART protocol; +VBATT (+12v) version only.

AVT-418 Technical Documentation

AVT-418 Press Release (PDF 30 KB)
AVT-418 Data Sheet (PDF xxxK)
AVT-418 Firmware Versions
AVT-418 Hardware Revisions
AVT-418 Photo 1 (board in enclosure) (62 KB)
AVT-418 Photo 2 (board with mounting brackets) (121 KB)

AVT-842

Multiple protocol interface. Low cost.
USB connection to host computer.
Fully capable interface with room to grow in functionality and capability.
Status: Out of production. Out of stock. No longer available. Replaced by the AVT-852.

Protocols supported:

CAN, 2-wire (CAN-C, ISO 11898, J1939, and others).

CAN, GM Single Wire CAN (SWC) (J2411).

CAN ISO 15765 support (multi-frame messaging).

J1850 VPW, GM Class 2, 1x and 4x modes, block transfers.

Fully supports GM-LAN.

K-Line communications (Keyword Protocol 2000, ISO 14230, ISO 9141).

LIN as both Master or Slave (versions 1.2, 1.3, 2.0, 2.1, 2.2A).

3 channels of analog to digital input.

User programmable automatic features.

User accessible EEPROM with security features.

Available as an OEM unit and to industrial and professional customers only.

AVT-842 Technical Documentation - refer to the Product Documents page.

AVT-842 Firmware Versions (same as AVT-841)
AVT-842 Hardware Revisions
AVT-842 photos.

AVT-843

Multiple protocol interface. Low cost.

Ethernet connection to host computer.
Fully capable interface with room to grow in functionality and capability.
Status: Out of production. Out of stock. No longer available. Replaced by the AVT-853.

Protocols supported:

CAN, 2-wire (CAN-C, ISO 11898, J1939, and others).

CAN, GM Single Wire CAN (SWC) (J2411).

CAN ISO 15765 support (multi-frame messaging).

J1850 VPW, GM Class 2, 1x and 4x modes, block transfers.

Fully supports GM-LAN.

K-Line communications (Keyword Protocol 2000, ISO 14230, ISO 9141).

LIN as both Master or Slave (versions 1.2, 1.3, 2.0, 2.1, 2.2A).

3 channels of analog to digital input.

User programmable automatic features.

User accessible EEPROM with security features.

In-stock for immediate delivery.

Available as an OEM unit and to industrial and professional customers only.

AVT-843 Technical Documentation - refer to the Product Documents page.

AVT-843 Firmware Versions (same as AVT-841)
AVT-843 Hardware Revisions
AVT-843 photos.

AVT-715

Dual J1850 interface.
RS-232 or RS-422 serial connection to host computer.
Status: Out of production. Some units are available. Contact me.

Protocols supported:

J1850 VPW (GM and DaimlerChrysler PCI)

J1850 PWM (Ford SCP compliant)

All AVT-715 materials have been archived into one zip file available for download .

AVT-716

Multiple protocol interface.
RS-232 or RS-422 serial connection to host computer.
Status: Out of production. Some units are available. Contact me.
Other units may be suitable replacement. Call or write for technical assistance.

Protocols supported:

J1850 VPW (GM Class 2 and DaimlerChrysler PCI) including GM 4x mode

J1850 PWM (Ford SCP compliant)

K-line (ISO 9141, ISO 9141-2, ISO 14230) with multiple initialization methods

GM 5-volt UART or ALDL

Chrysler CCD

All AVT-716 materials have been archived into one zip file available for download.

AVT-717

Multiple interface.
RS-232 or RS-422 serial connection to host.
Status: Out of production. Some units are available. Contact me.

Other units may be suitable replacement. Call or write for technical assistance.

Protocols supported:

CAN 2-wire

CAN single wire

LIN

UBP

All AVT-717 materials have been archived into one zip file available for download.

AVT-921

Dual J1850 interface.
ISA bus card, 8-bit. 3/4 XT form factor.
Status: Out of production. Some units are available. Contact me.

Protocols supported:

J1850 VPW (GM Class 2 and DaimlerChrysler PCI) including GM 4x mode

J1850 PWM (Ford SCP compliant)

Contact the factory for availability

Driver software available from a third party
(Refer to the Technical Information page, PTM Electronics for contact information.)

All AVT-921 materials have been archived into one zip file available for download .

AVT-931

Dual J1850 interface.
PC/104 card, 8-bit ISA bus.
Status: Out of production. Some units are available. Contact me.

Protocols supported:

J1850 VPW (GM Class 2 and DaimlerChrysler PCI) including GM 4x mode

J1850 PWM (Ford SCP compliant)

All AVT-931 materials have been archived into one zip file available for download.

AVT-932

Dual J1850 interface to Ethernet.
PC/104 card, 8-bit ISA bus.
With attached Ethernet CPU card, 10 Base-T.
Status: Out of production. Out of stock.

Protocols supported:

J1850 VPW (GM Class 2 compliant, DaimlerChrysler PCI).

J1850 PWM (Ford SCP compliant).

Contact the factory for availability.

All AVT-932 materials have been archived into one zip file available for download .

AVT-1850

J1850 VPW Development system.
ISA bus card. 8-bit. Full size AT card.
Status: Out of production. Some units may be available. Contact me.
This was a development system designed around the Harris / Intersil HIP7030 device family. It included the AVT-1850 ISA board and the software development environment known as "EOS".
All AVT-1850 materials have been archived into one zip file available for download .

USB Info

USB Information

The AVT-852 was the only USB product I offered. It is no longer in production.

For all of our other serial hardware we have tested and recommend the following USB to serial converter.
It is very affordable and works very well with our RS-232 serial hardware.
WCSC Model # HdwUSBRS232
http://www.wcscnet.com/HdwUSBRS232.htm

Site Map
